Home >> Mazda >> 2005 >> 6 s, 4D Hatchback, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Symptom Troubleshooting (Keyless Entry System) >> Keyless Entry System On-Board Diagnosis

Keyless Entry System On-Board Diagnosis

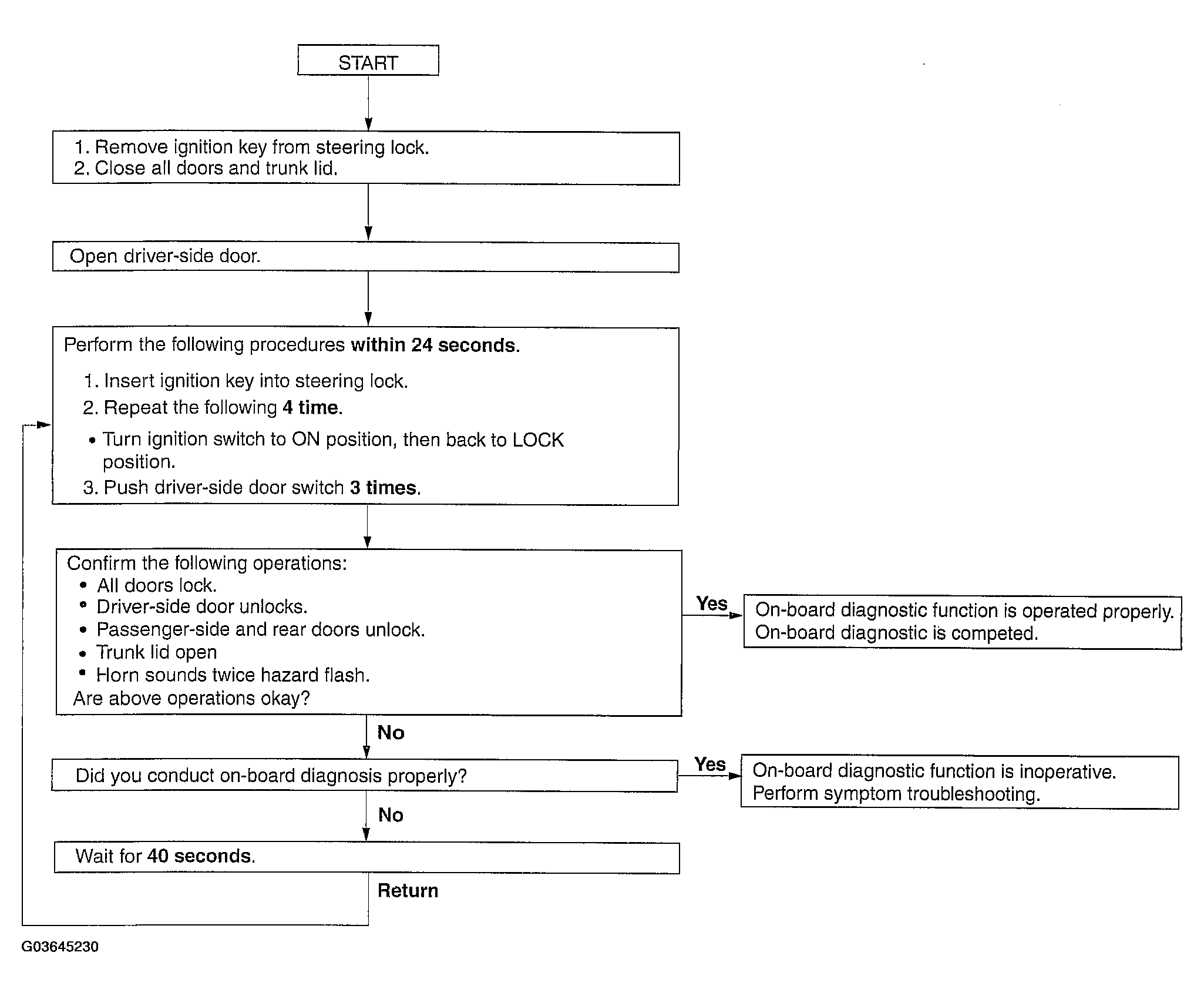

Fig 1: Identifying Keyless Entry System On-Board Diagnosis Flow Chart

G03645230

Courtesy of MAZDA MOTORS CORP.
