Selector Lever Disassembly/Assembly

  1. Disassemble in the order shown in the figure.

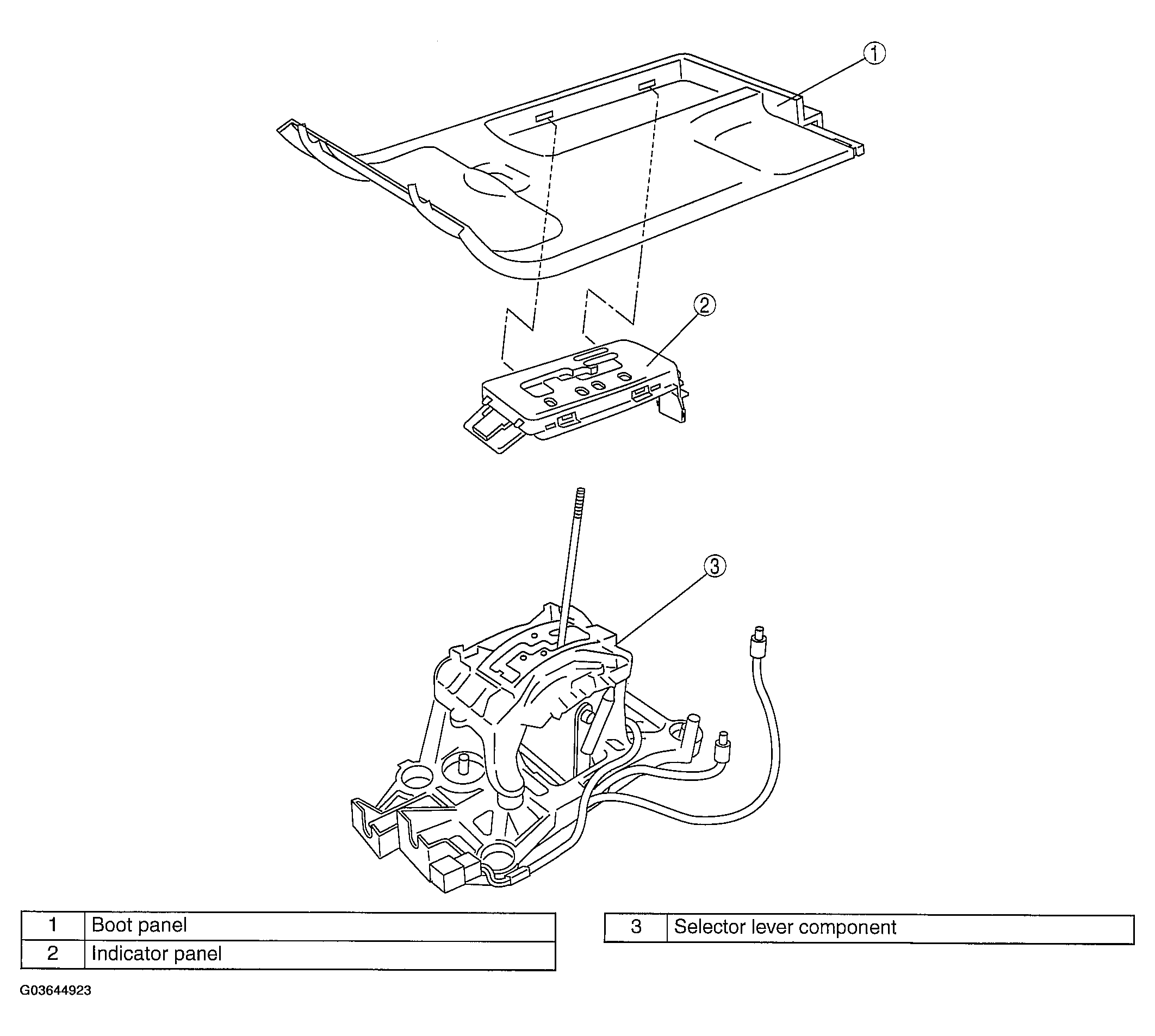

    Fig 1: Identifying Selector Lever Removing Sequence
    G03644923Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
