Selector Cable Installation Note (FN4A-EL automatic transaxle models)

Install the selector cable to the selector lever securely.

Fig 1: Installing Selector Cable To Selector Lever Securely
Courtesy of MAZDA MOTORS CORP.
Install the selector cable to the bracket securely.
NOTE:
- Steps 3 and 4 are for the selector cable replacement only.
Fig 2: Installing Selector Cable To Bracket Securely
Courtesy of MAZDA MOTORS CORP.
Verify that the selector lever is in the P position.
4. Lock the lock piece of the selector cable (selector lever side) in the order shown in the figure.

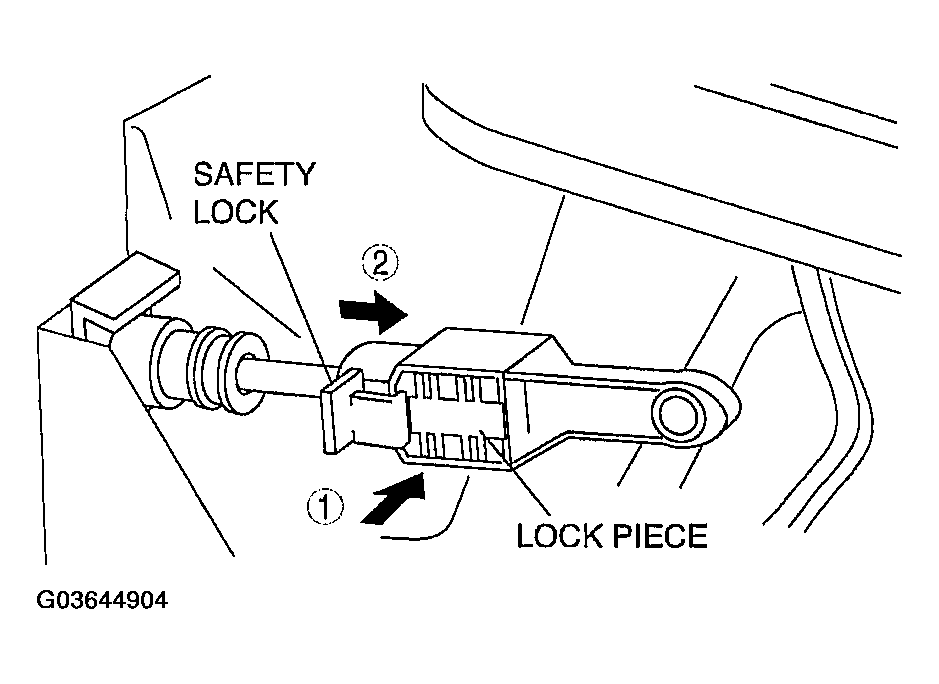

Fig 3: Identifying Lock Piece
Courtesy of MAZDA MOTORS CORP.
Verify that the manual shaft is in the P position.
CAUTION:
- Bending the selector cable in the manner shown in the figure will damage the cable and it may become loose when shifted. When installing the selector cable, hold it straight.

  Fig 4: Identifying Bending Selector Cable
  Courtesy of MAZDA MOTORS CORP.
Install the clip as shown in the figure.

Fig 5: Identifying Clip
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Install the selector lever to the manual shaft lever with the clip side of the selector cable end facing the front of the vehicle.
Install the selector lever to the manual shaft lever so that no load acts on the selector cable.

Fig 6: Installing Selector Lever To Manual Shaft Lever
Courtesy of MAZDA MOTORS CORP.
Confirm that the tip of the manual shaft lever projects out of the end of the selector cable.
Securely install the selector cable to the selector cable bracket.
