Home >> Mazda >> 2005 >> 6 s, 4D Hatchback, Automatic >> Repair and Diagnosis >> Electrical >> Horns >> Instrumentation/Driver Info >> Instrument Cluster Input/Output Check Mode >> Operating Order

Operating Order

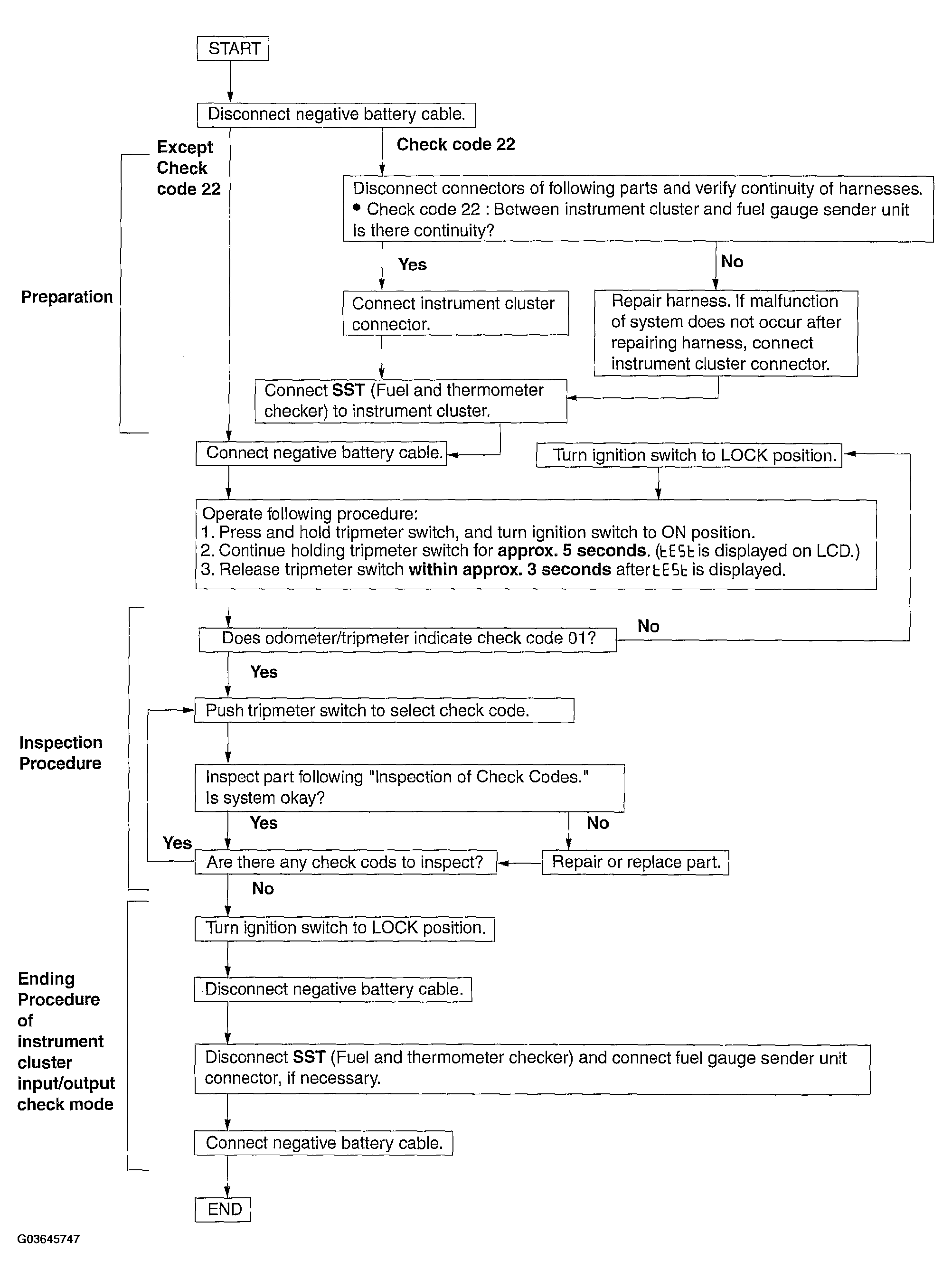

Fig 1: Operating Order Flow Chart
G03645747Courtesy of MAZDA MOTORS CORP.
