Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

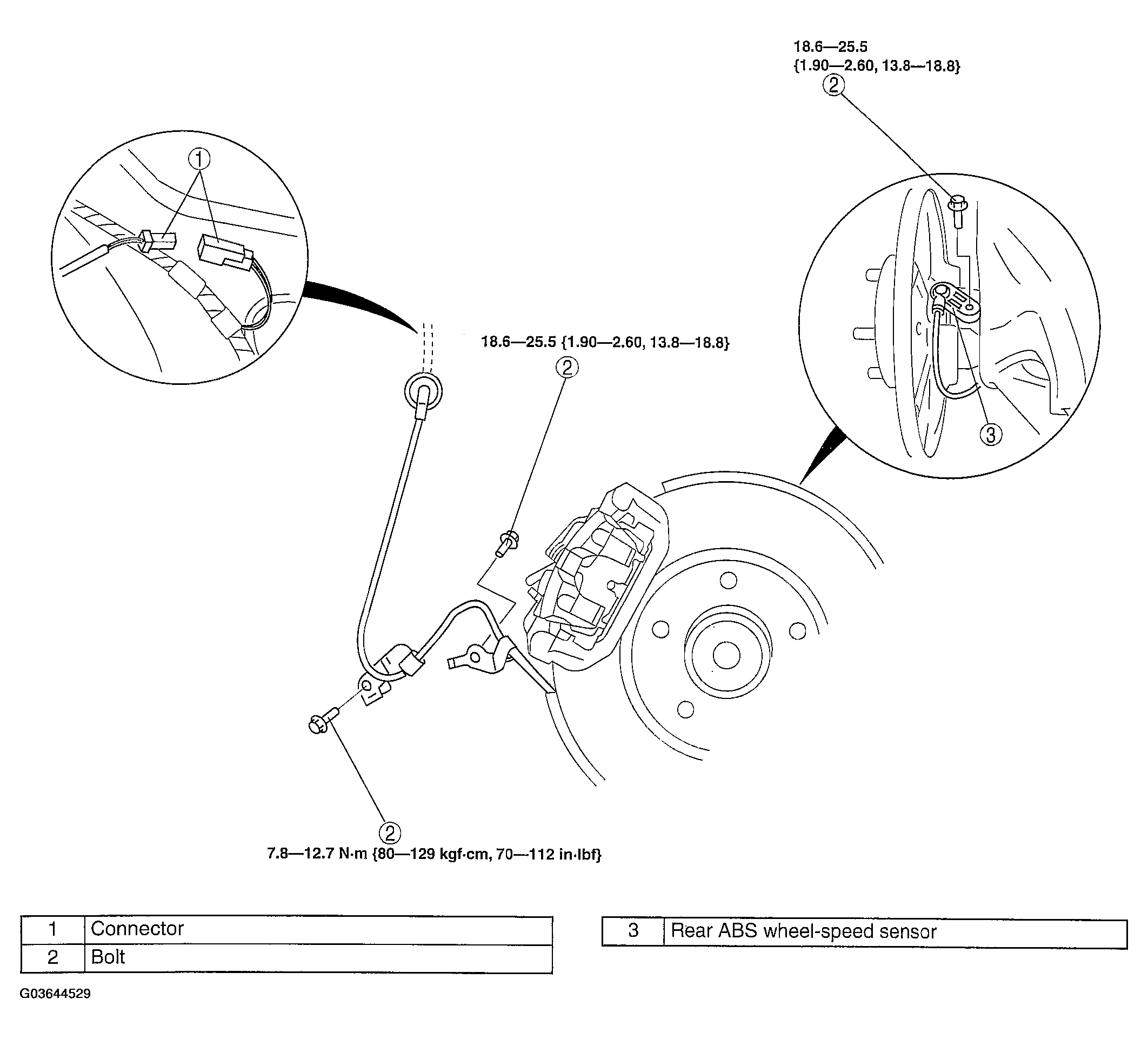

    Fig 1: Removal Order Of Rear ABS Wheel-Speed Sensor (Torque Specs)
    G03644529Courtesy of MAZDA MOTORS CORP.
