Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

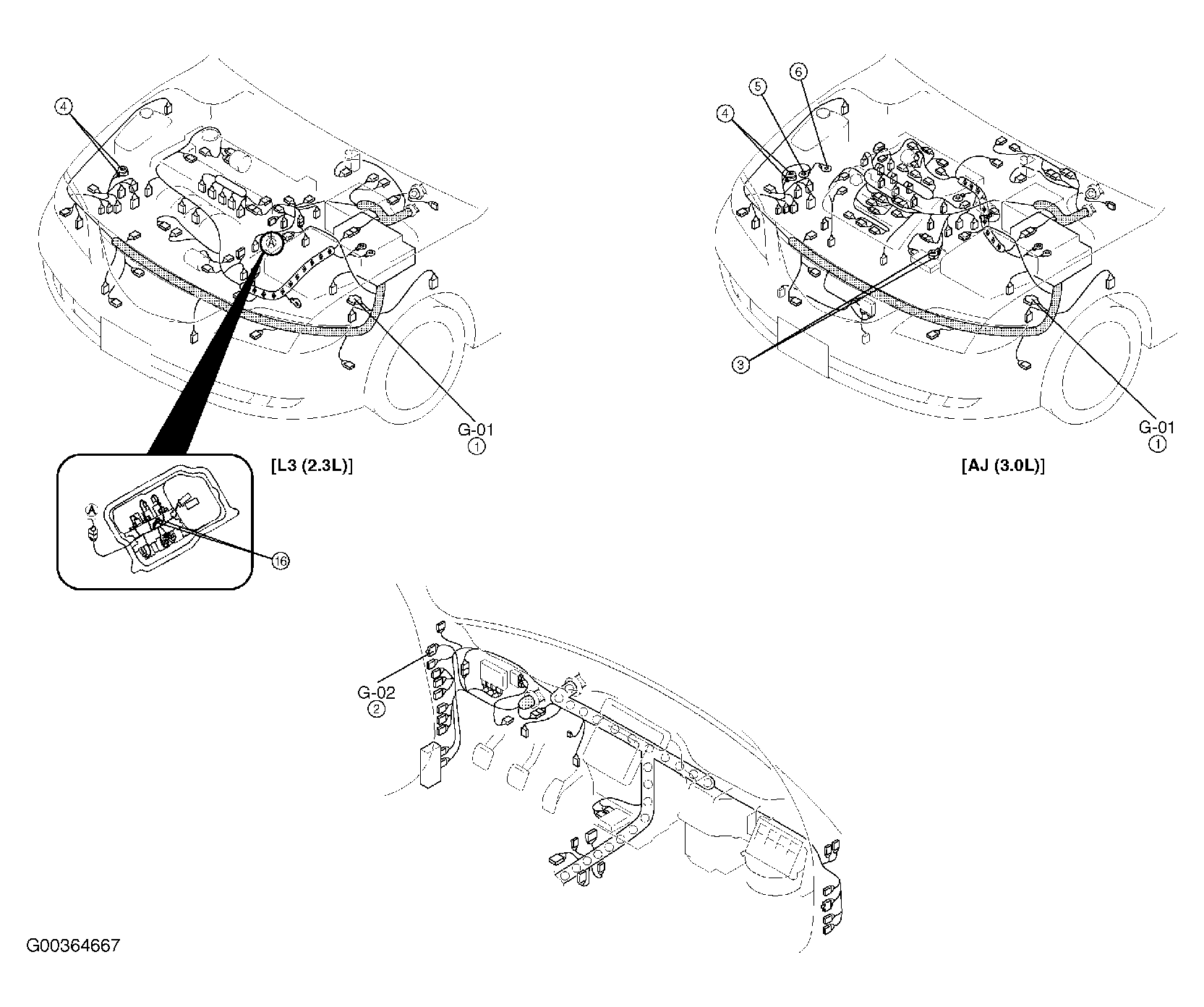

| G1 (2.3L) | At left side of engine compartment. See Figure . |
| G1 (3.0L) | At left side of engine compartment. See Figure . |
| G2 | Behind left end of dash. See Figure . |
| G3 (2.3L) | At rear of engine. See Figure . |
| G3 (3.0L) | At left rear of engine. See Figure . |
| G4 (2.3L) | At right front of engine compartment. See Figure . |
| G4 (3.0L) | At right front of engine compartment. See Figure . |
| G5 | At right side of engine compartment. See Figure . |
| G6 | At right side of engine compartment. See Figure . |

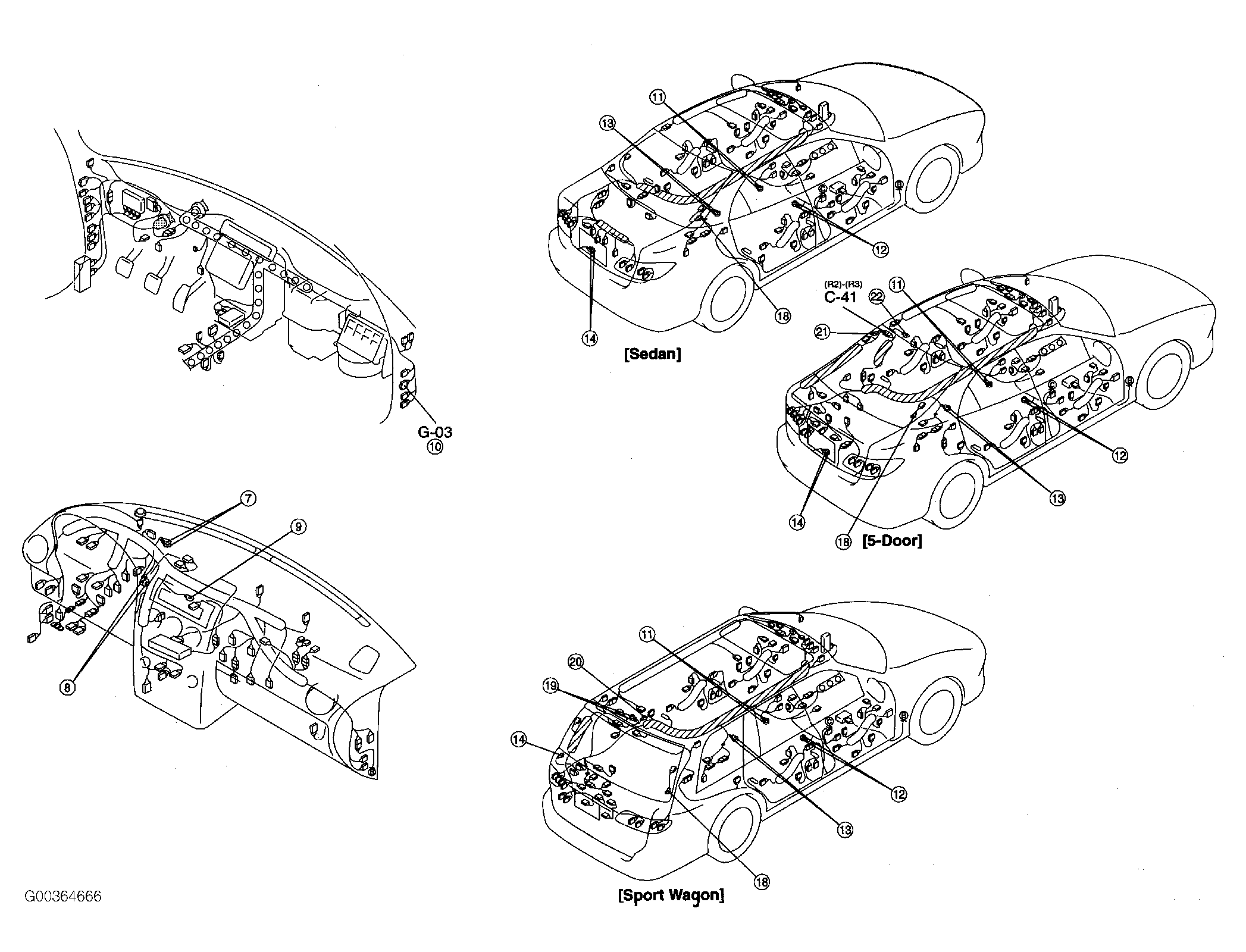

| G7 | Behind left side of dash. See Figure . |
| G8 | Behind left side of dash. See Figure . |
| G9 | Behind center of dash. See Figure . |
| G10 | Behind right end of dash. See Figure . |
| G11 | Under left front seat. See Figure . |
| G12 | Under right front seat. See Figure . |
| G13 | At left rear door sill. See Figure . |
| G14 | At center rear of trunk. See Figure . |
| G16 | At rear of engine. See Figure . |
| G17 | At left rear of engine. See Figure . |
| G18 | At left rear door sill. See Figure . |
