Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

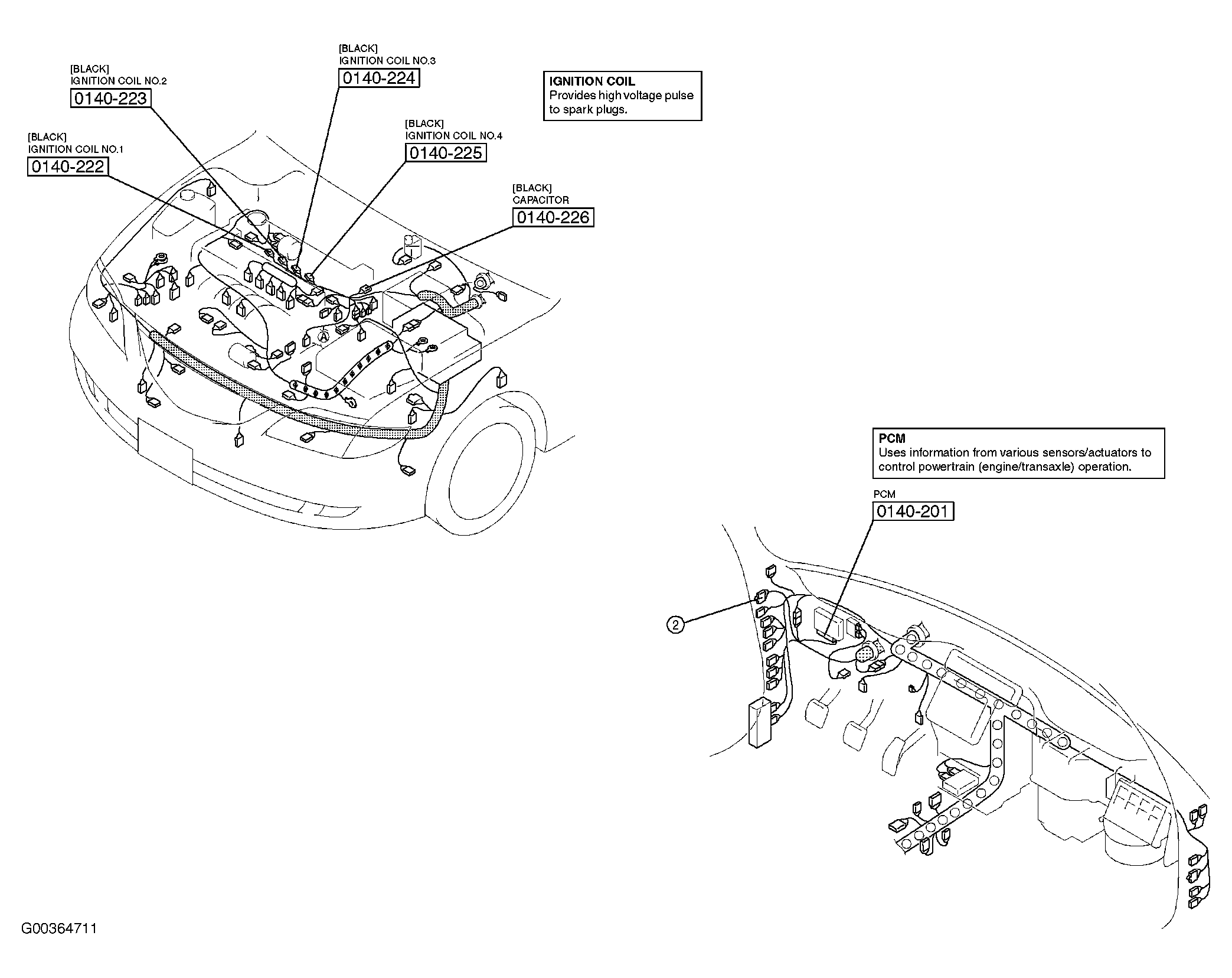

Capacitor Right rear of engine. See Figure .

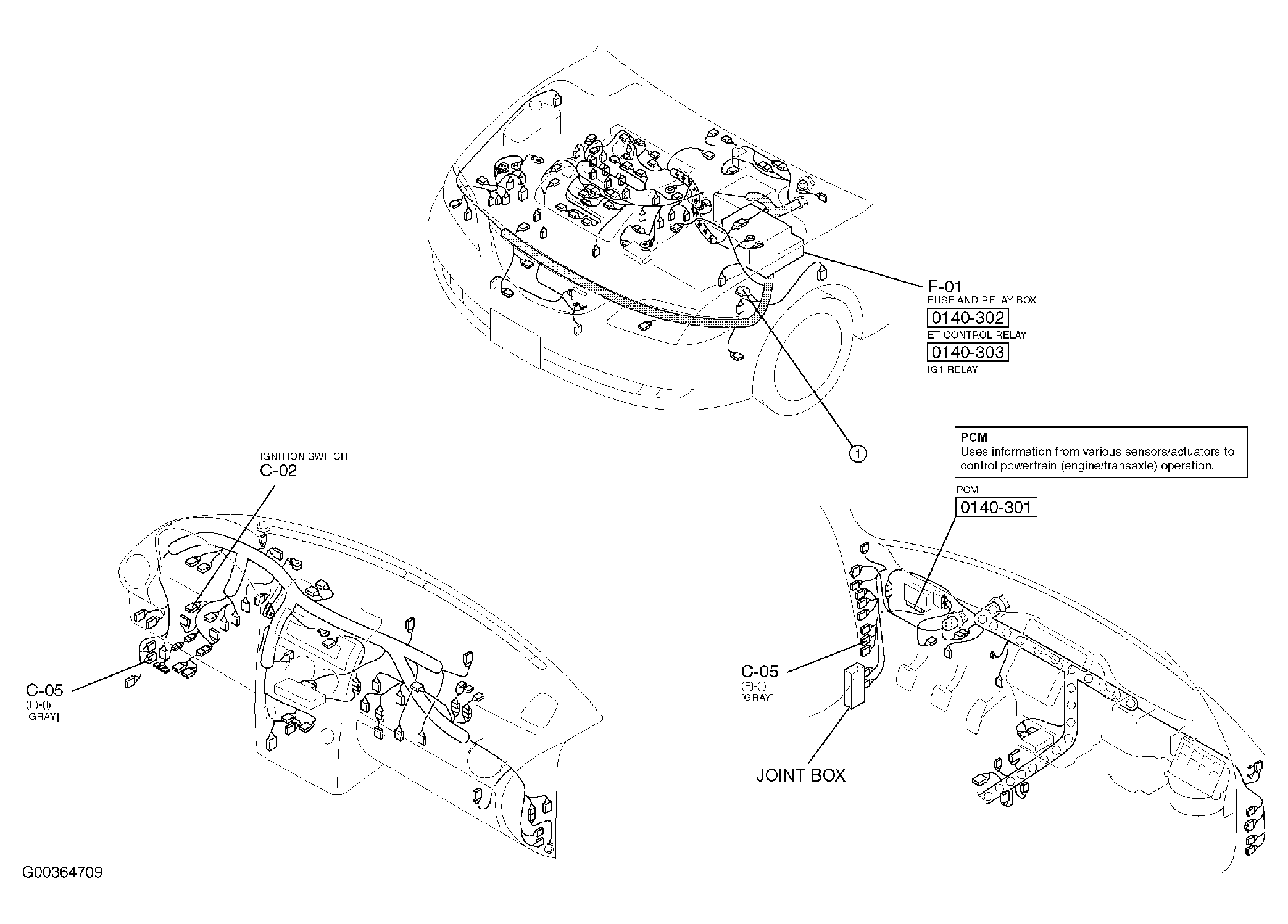

Fuse & Relay Box On left front inner fender panel. See Figure .

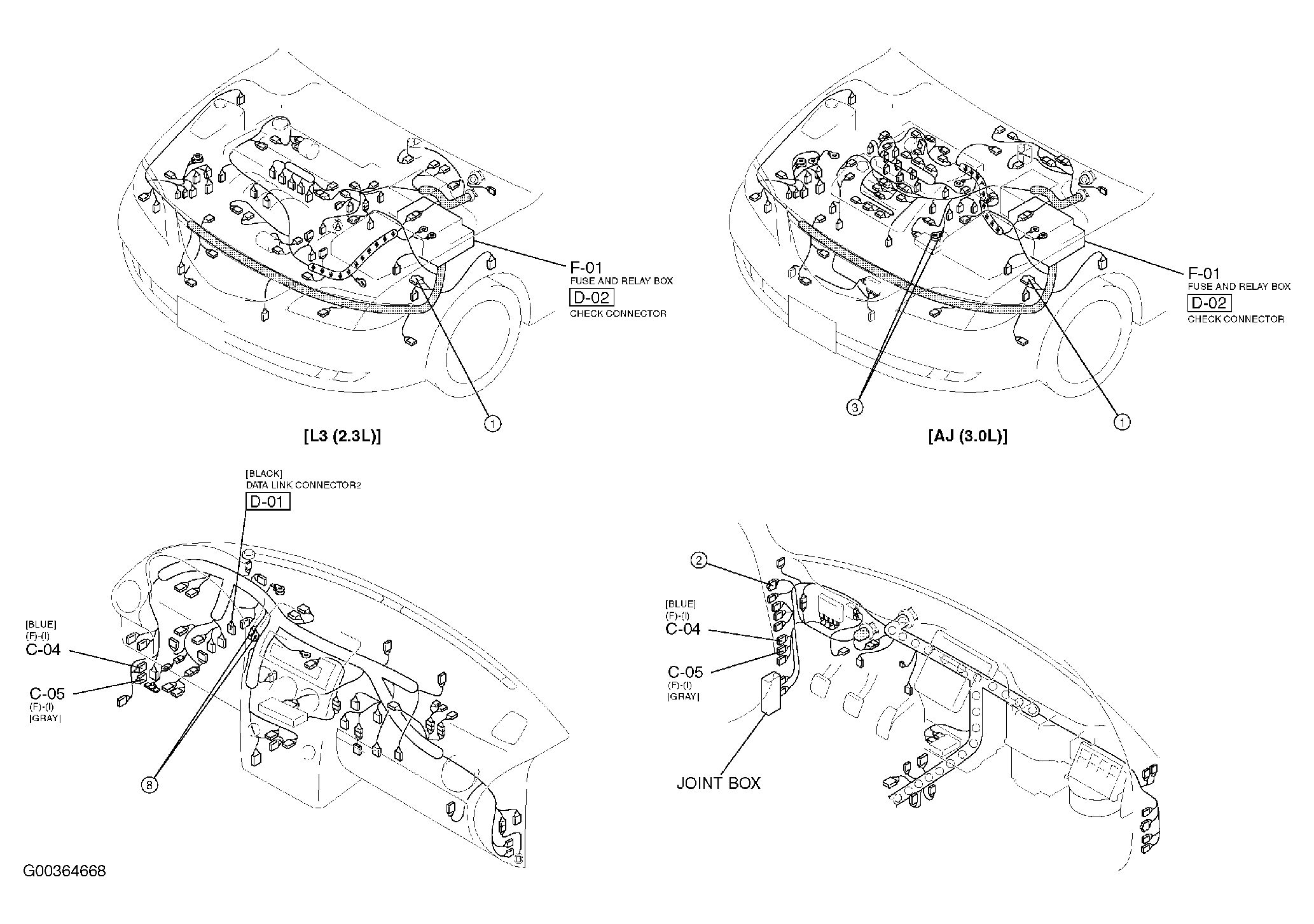

Joint Box Behind left kick panel. See Figure .
