Ignition Coil Removal/Installation: L3

Disconnect the negative battery cable.
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L3] .)
Remove in the order indicated in the table.

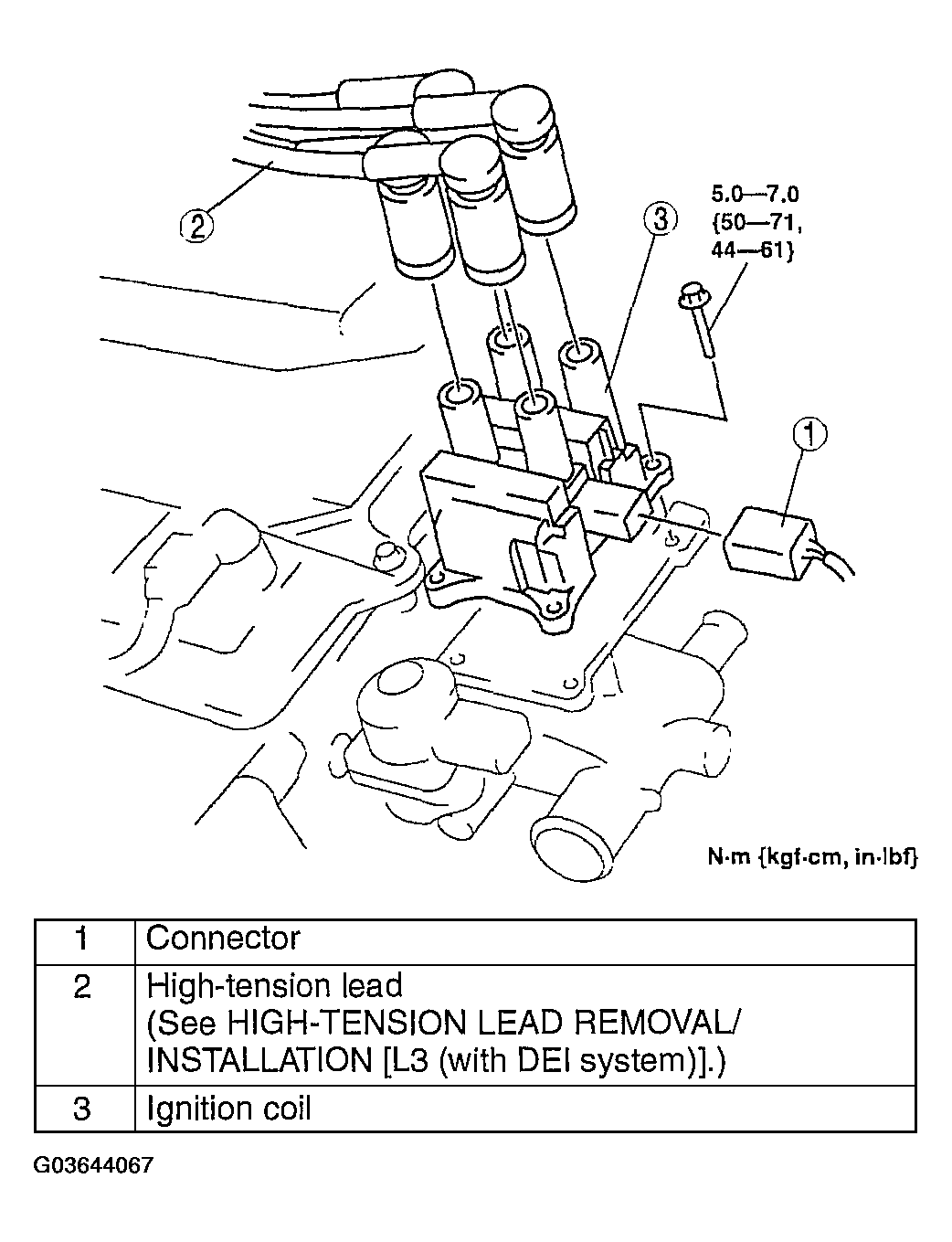

With DEI system

Fig 1: Ignition Coil And High-Tension Lead (Torque Specs)
Courtesy of MAZDA MOTORS CORP.

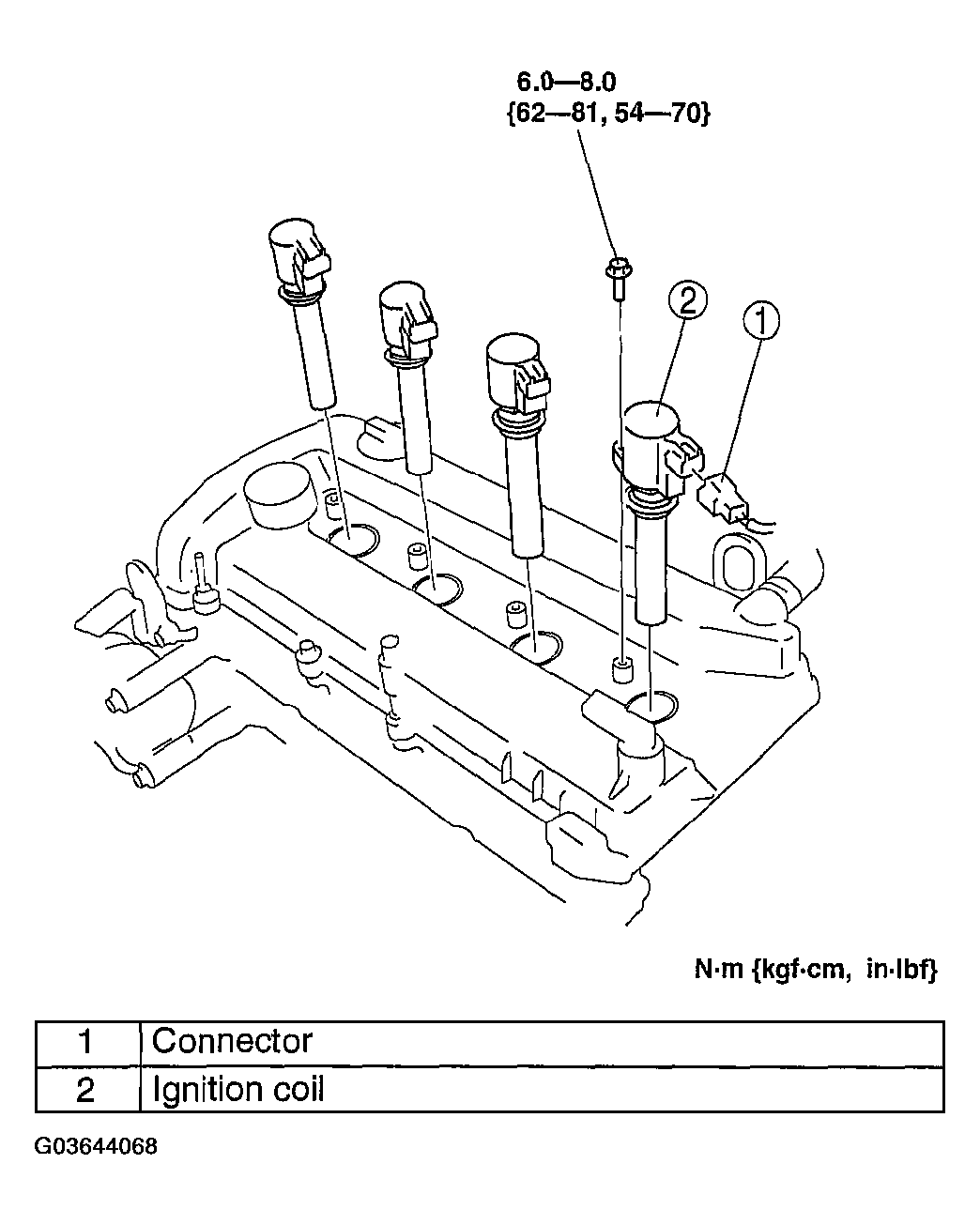

With SEI system

Fig 2: Ignition Coil And Connector (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
