On-Board Diagnostic (Engine Control System (L3)
>>
Monitoring System And Control System Device Relationship Chart
>>
Except for California Emission Regulation Applicable ATX Model
Except for California Emission Regulation Applicable ATX Model

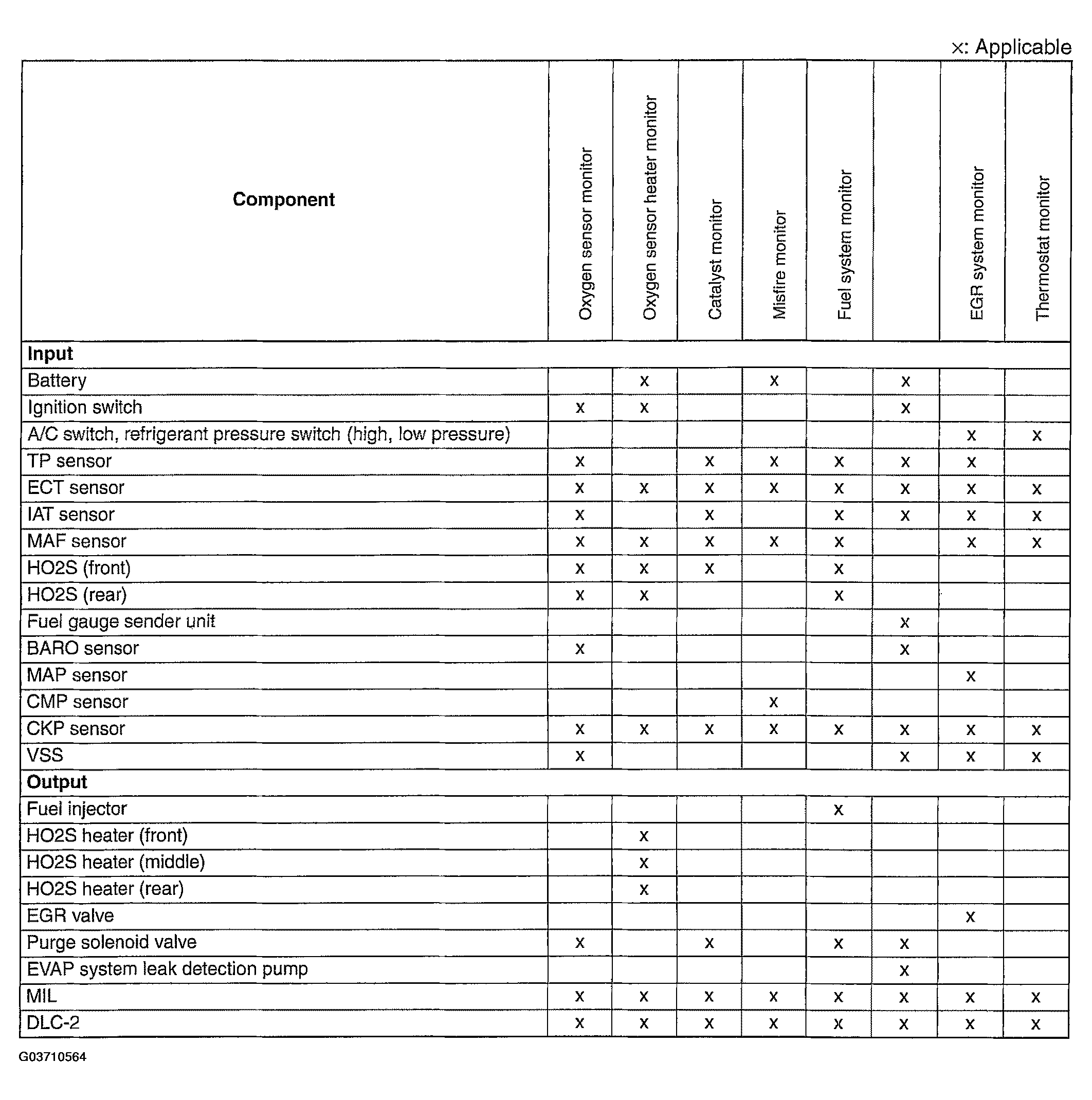

Fig 1: Monitoring System And Control System Device Relationship Chart [L3] (Except California)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
