DTC P2504: Notes

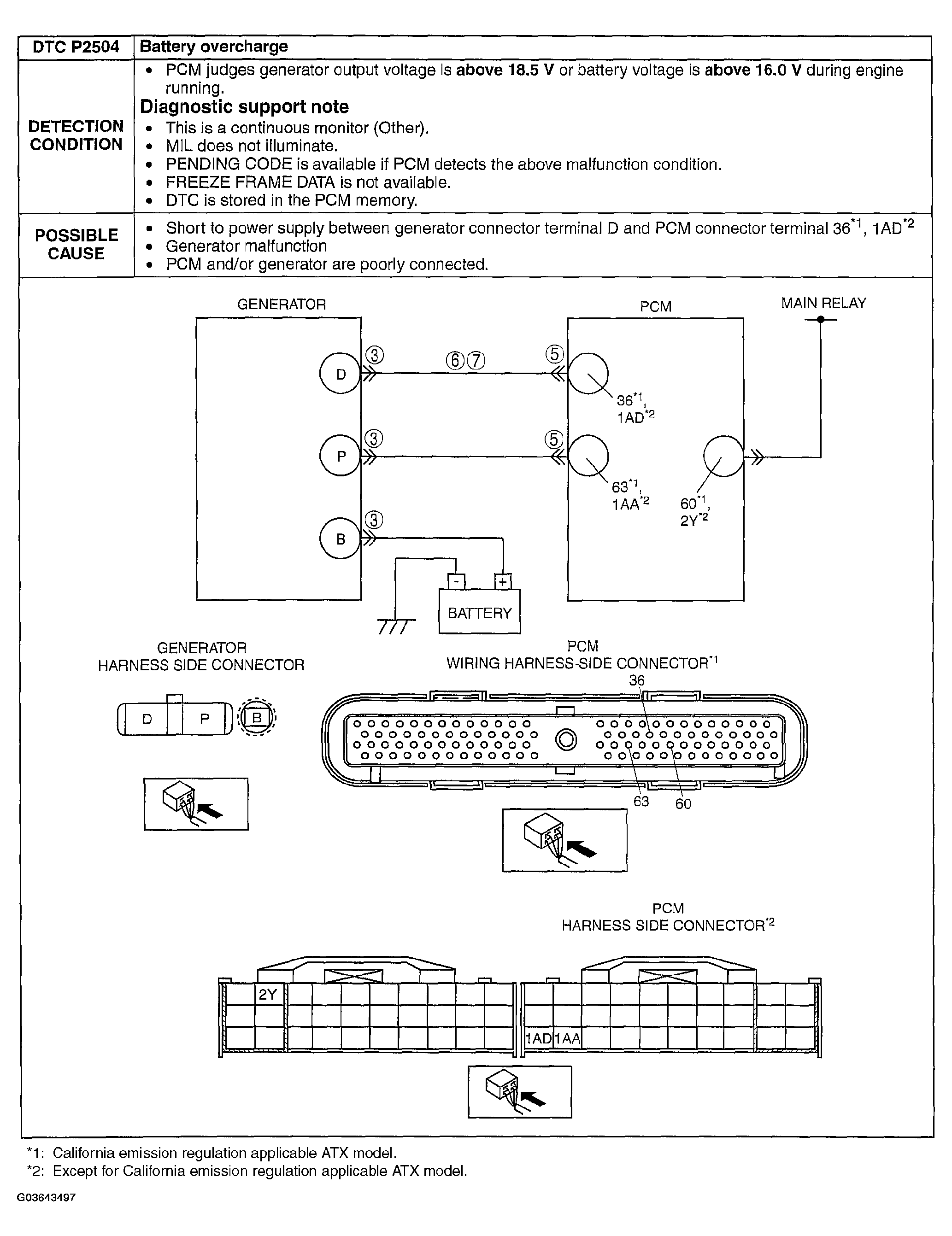

Fig 1: DTC P2504 [L3] Detection Condition And Possible Cause

G03643497

Courtesy of MAZDA MOTORS CORP.
