DTC P2502: Notes

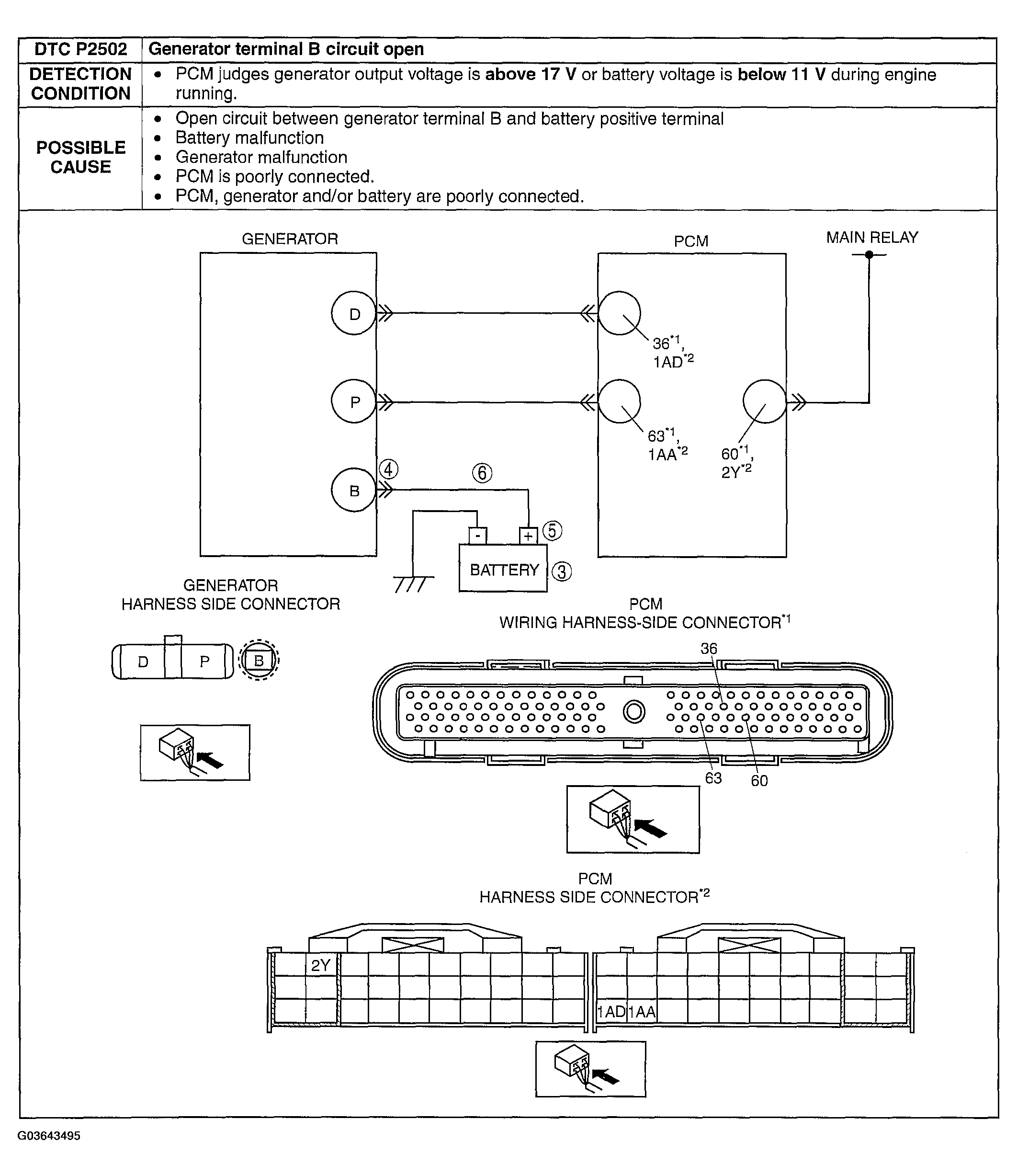

Fig 1: DTC P2502 [L3] Detection Condition And Possible Cause

G03643495

Courtesy of MAZDA MOTORS CORP.
