DTC P2103: Notes

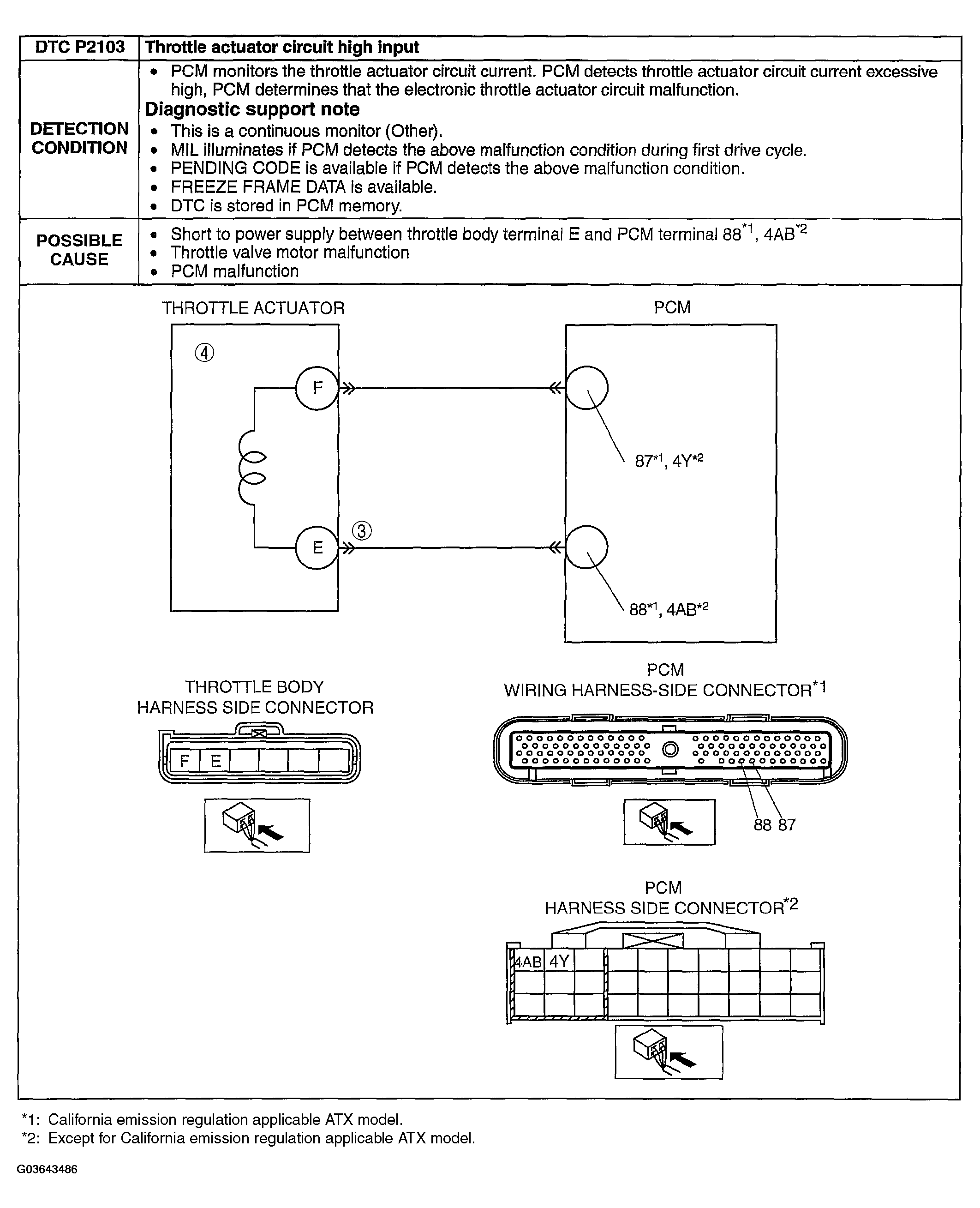

Fig 1: DTC P2103 [L3] Detection Condition And Possible Cause

G03643486

Courtesy of MAZDA MOTORS CORP.
