DTC P0222: Notes

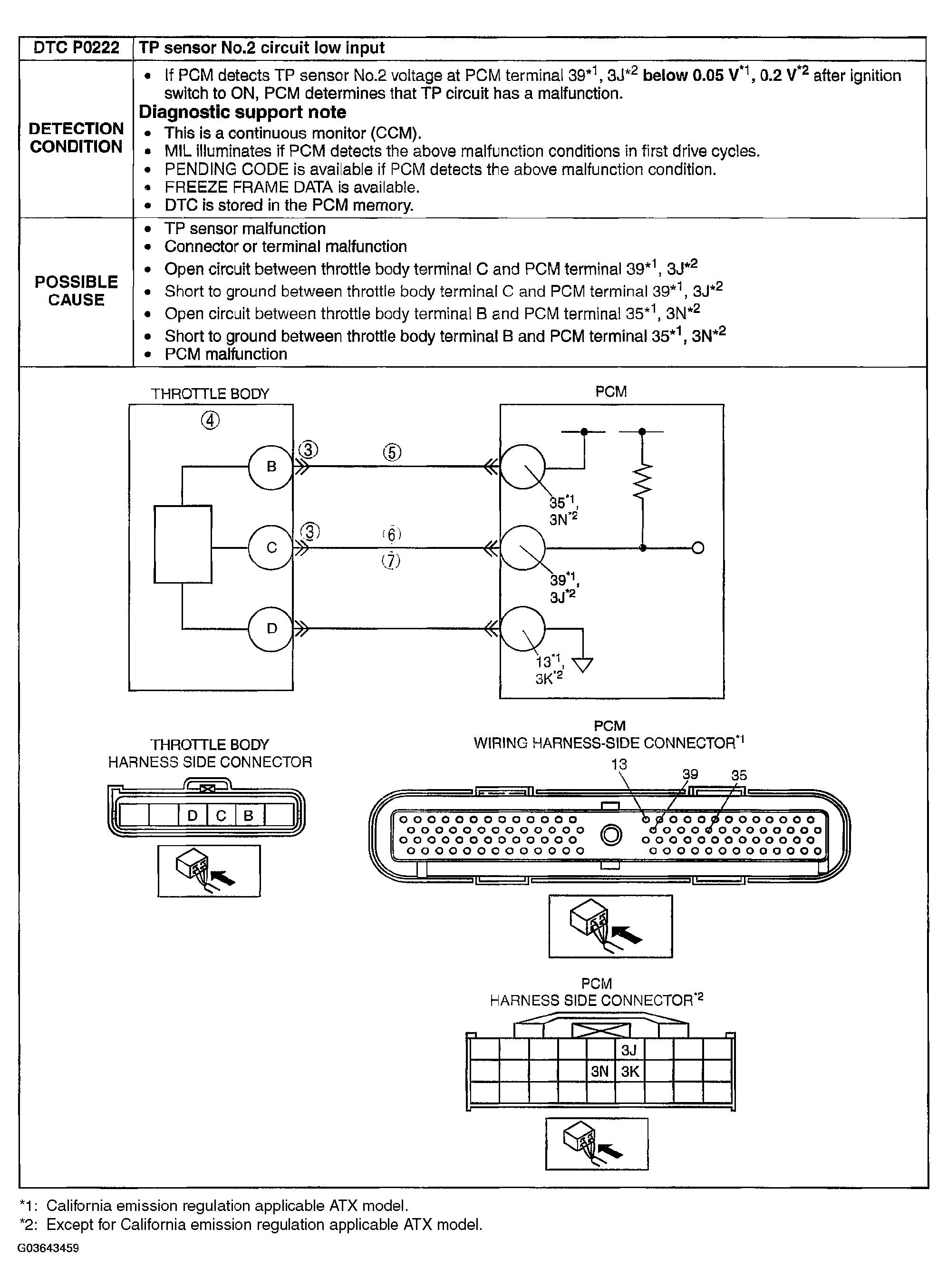

Fig 1: DTC P0222 [L3] Detection Condition & Possible Causes

G03643459

Courtesy of MAZDA MOTORS CORP.
