Home >> Mazda >> 2005 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System (L3) >> DTC P0103 >> Notes

DTC P0103: Notes

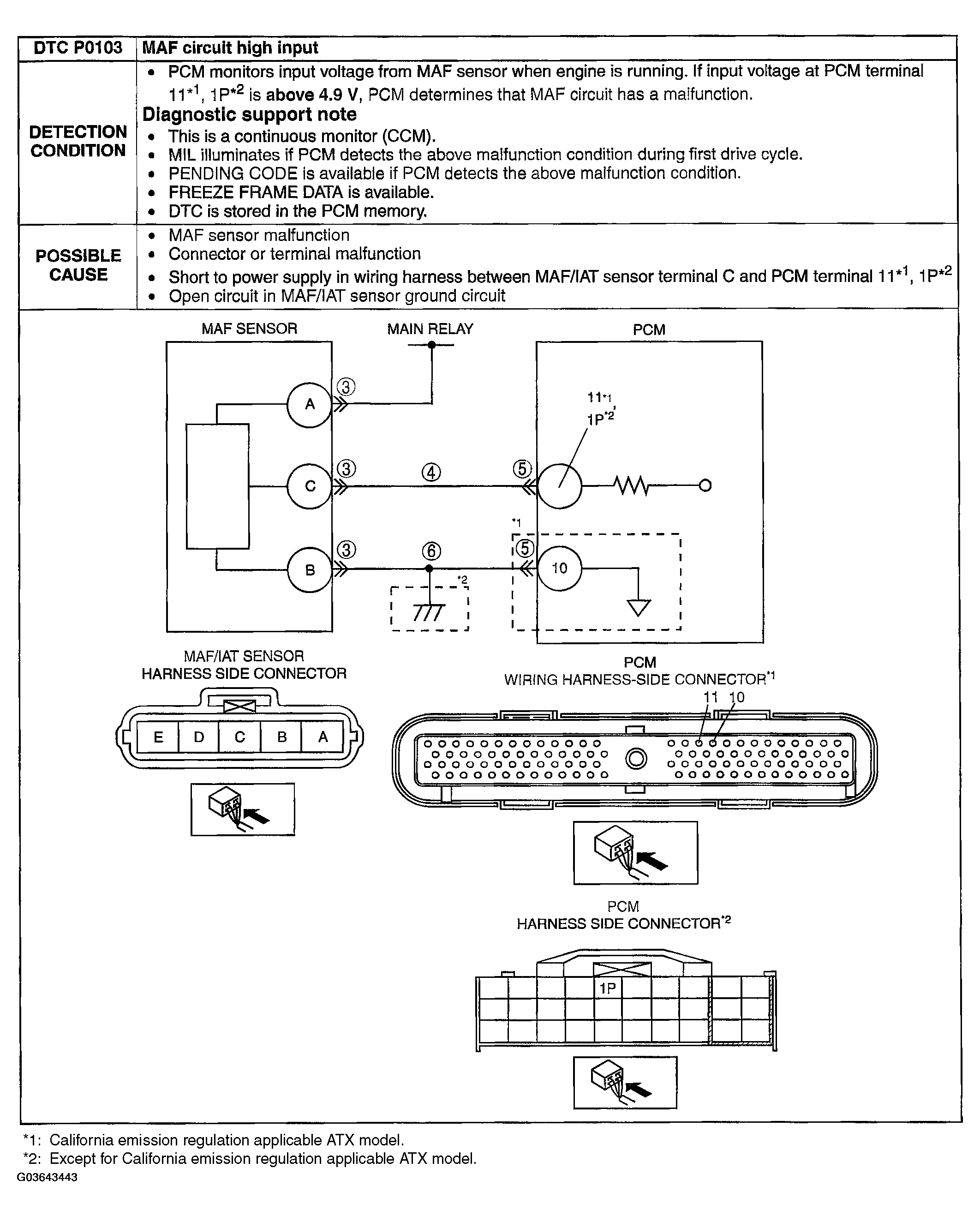

Fig 1: DTC P0103 [L3] Detection Condition & Possible Causes

G03643443

Courtesy of MAZDA MOTORS CORP.
