After Repair Procedure

  1. Connect WDS or equivalent.
  2. Cycle the ignition switch from OFF to ON.
  3. Record DTC if retrieved.
  4. Clear all diagnostic data by WDS or equivalent.

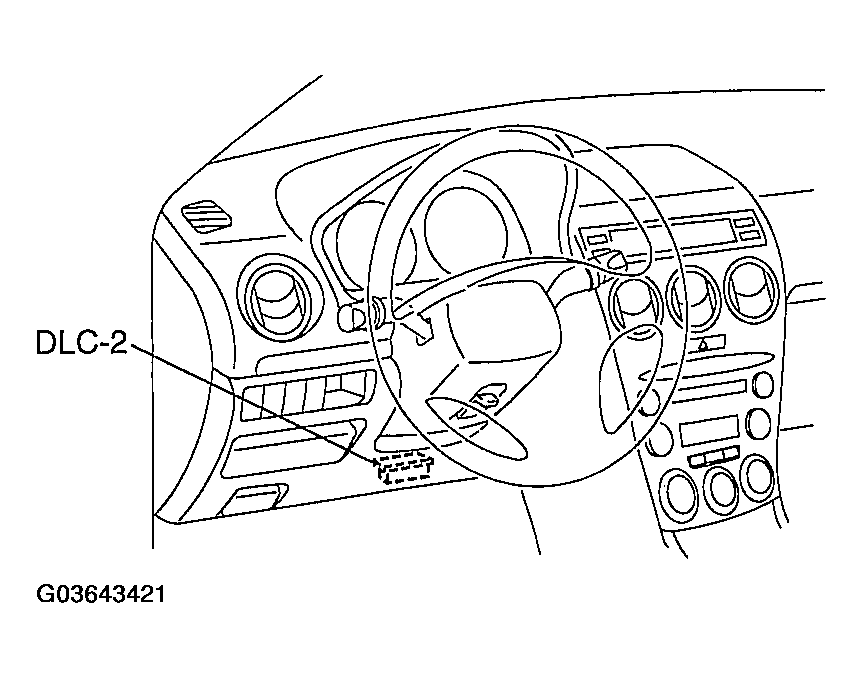

    Fig 1: Locating DLC-2 16-Pin Connector
    G03643421Courtesy of MAZDA MOTORS CORP.
