Home >> Mazda >> 2005 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel System Location Index >> Engine Room Side >> AJ engine models

AJ engine models

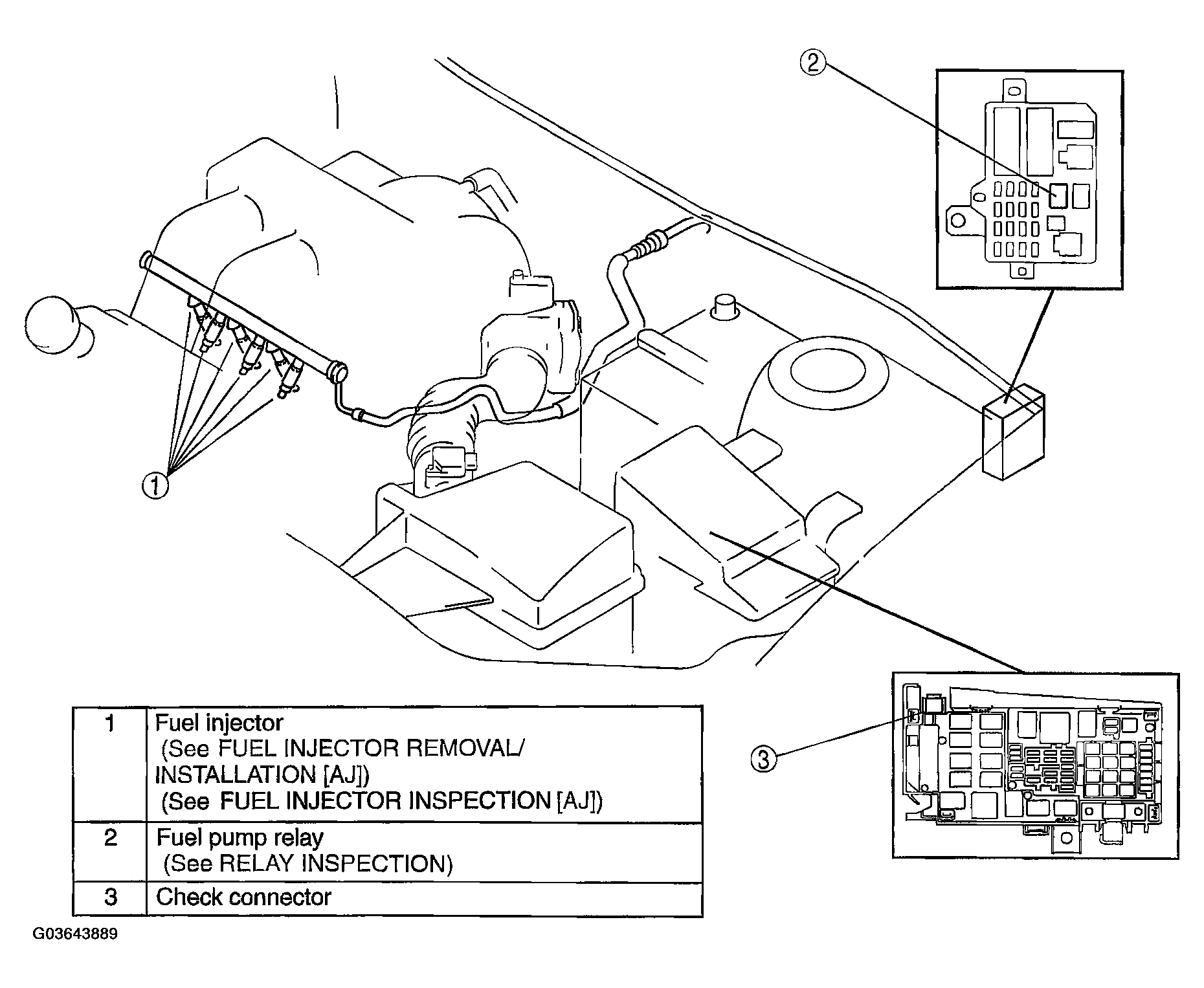

Fig 1: Identifying Fuel Pump Relay (AJ Engine Models)

G03643889

Courtesy of MAZDA MOTORS CORP.
