Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L3] .)
  2. Inspect the following wiring harnesses for open or short circuit (continuity check).

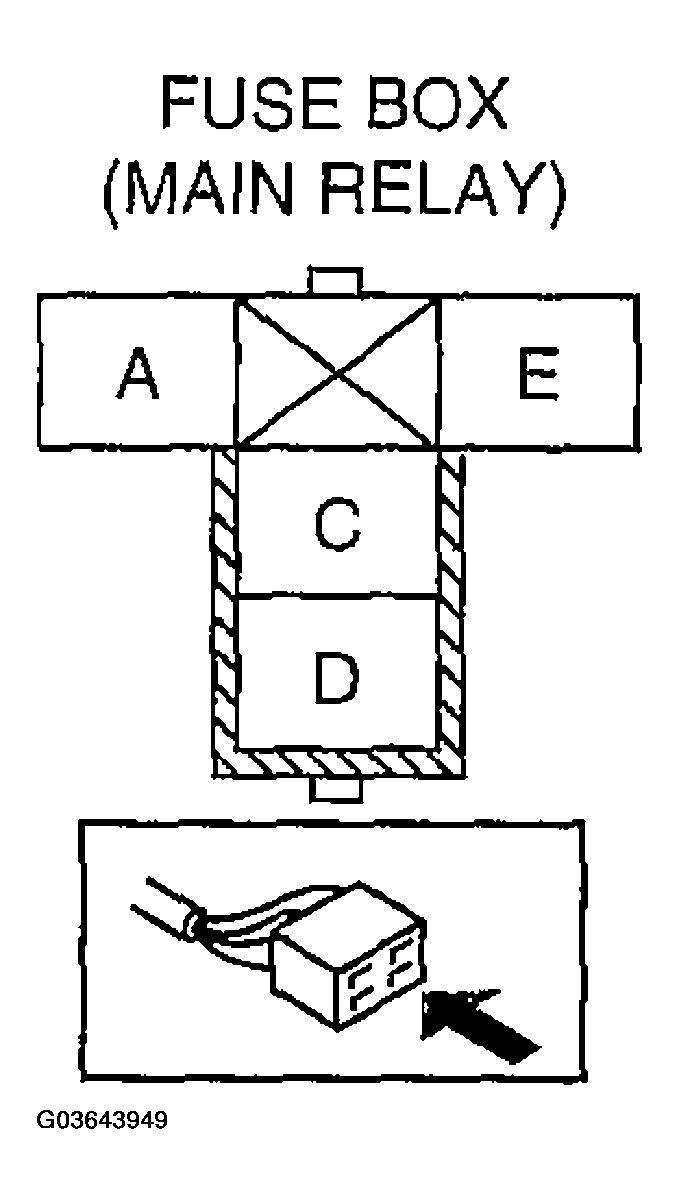

    Fig 1: Identifying Connector Terminal
    G03643949Courtesy of MAZDA MOTORS CORP.
