6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (L3)
>>
Control System Diagram
>>
Except for California emission regulation applicable ATX model
Except for California emission regulation applicable ATX model

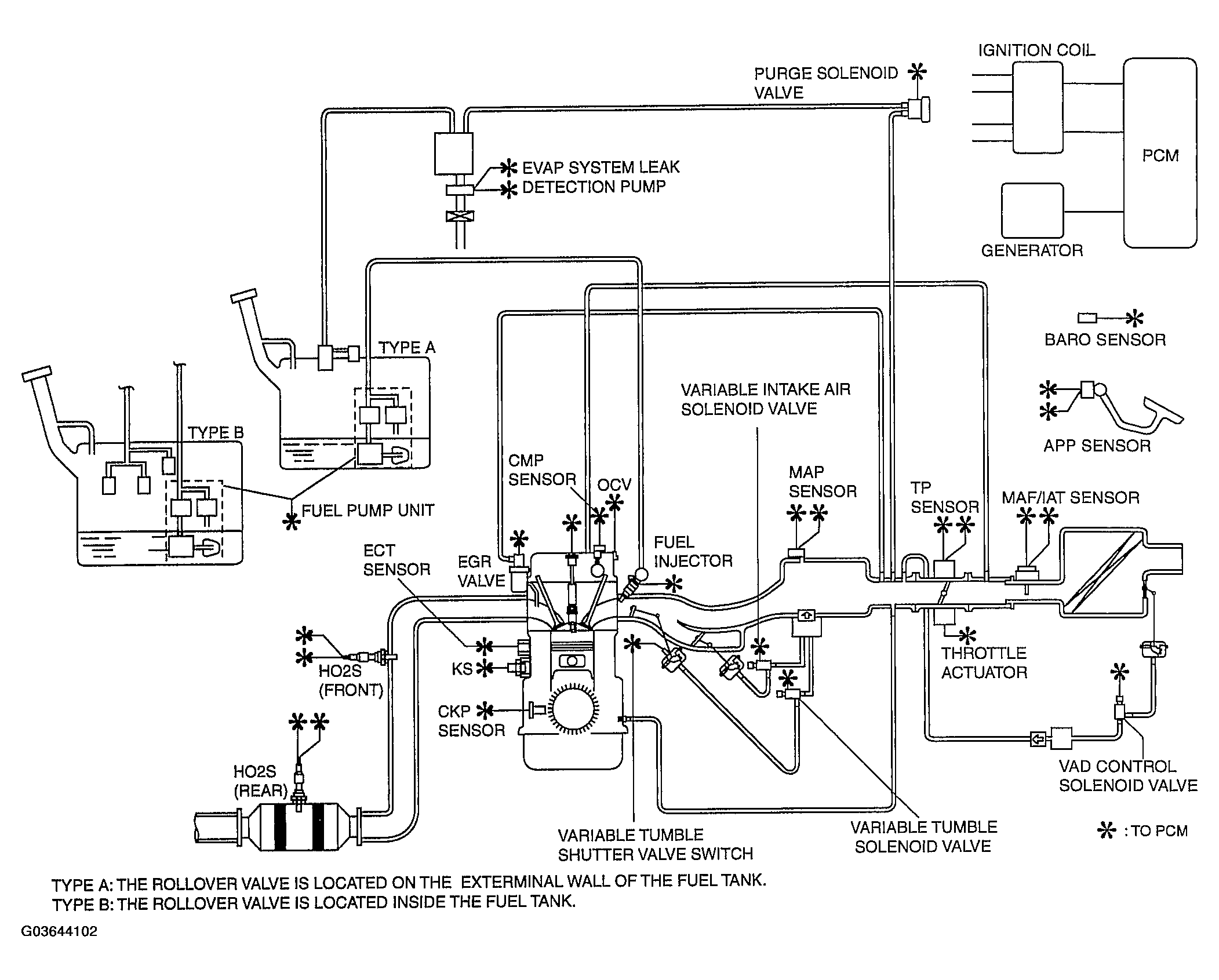

Fig 1: Control System Diagram [L3] (Except California Emission Regulation Applicable ATX Model)
