Control System Diagram
>>
California emission regulation applicable ATX model
California emission regulation applicable ATX model

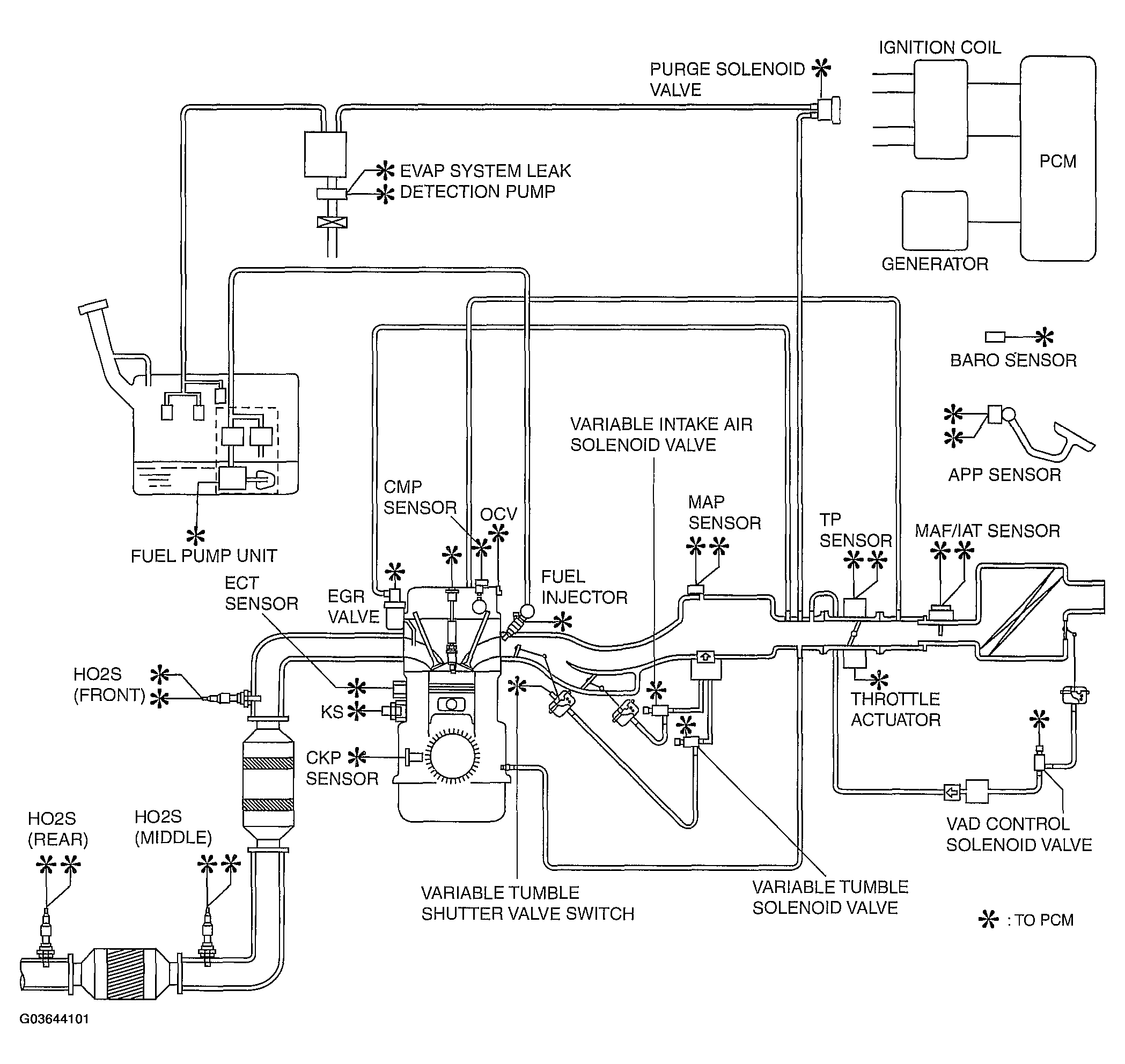

Fig 1: Control System Diagram [L3] (California Emission Regulation Applicable ATX Model)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
