Generator Removal/Installation: L3

  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove the drive belt. (See DRIVE BELT REPLACEMENT [L3] .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

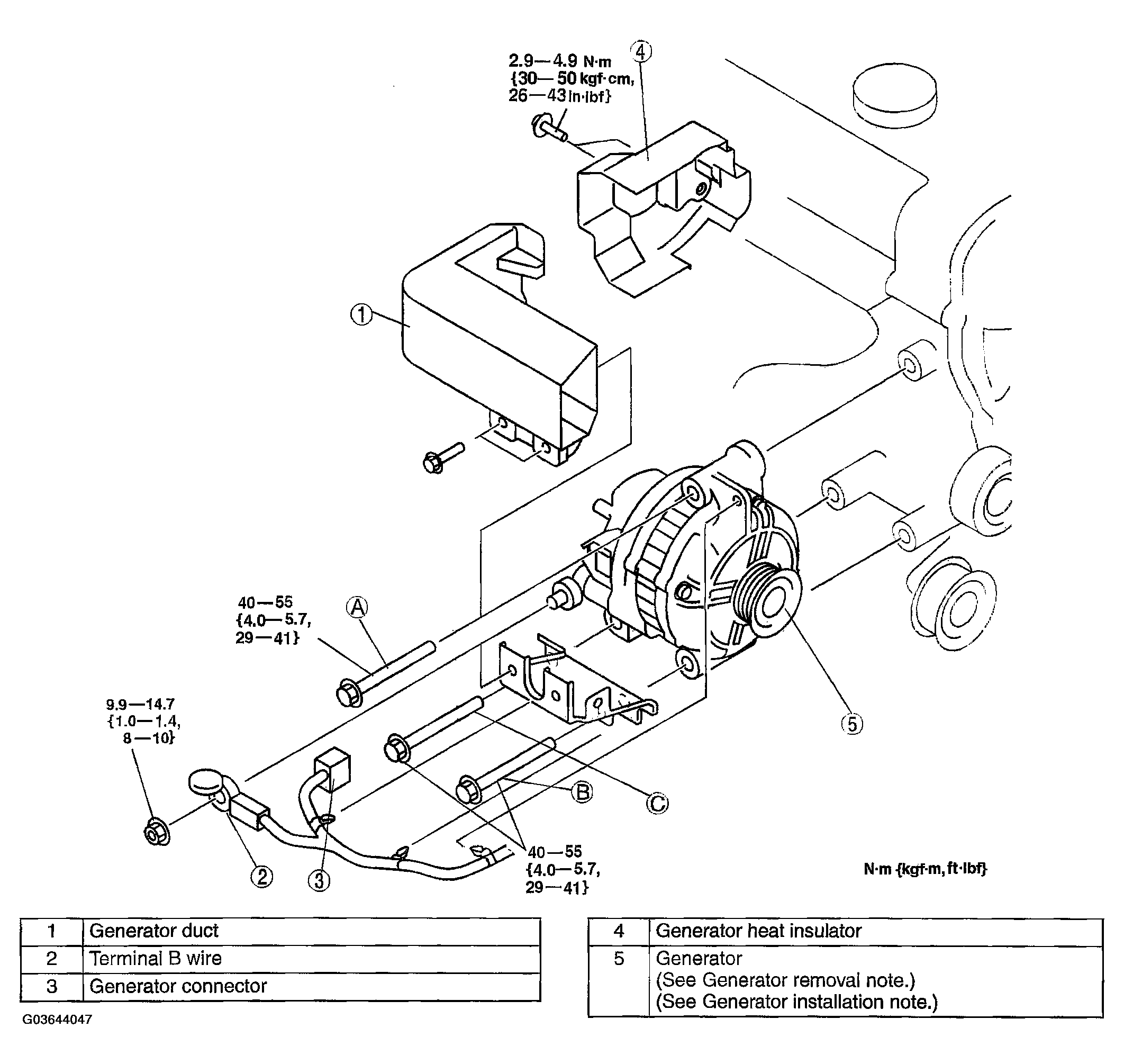

    Fig 1: Exploded View Of Generator (Torque Specs)
    G03644047Courtesy of MAZDA MOTORS CORP.
