Generator Removal/Installation: AJ

  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove the drive belt. (See DRIVE BELT REPLACEMENT [AJ] .)
  4. Remove the TWC (RH) and the front pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [AJ] .)
  5. Remove in the order indicated in the table.

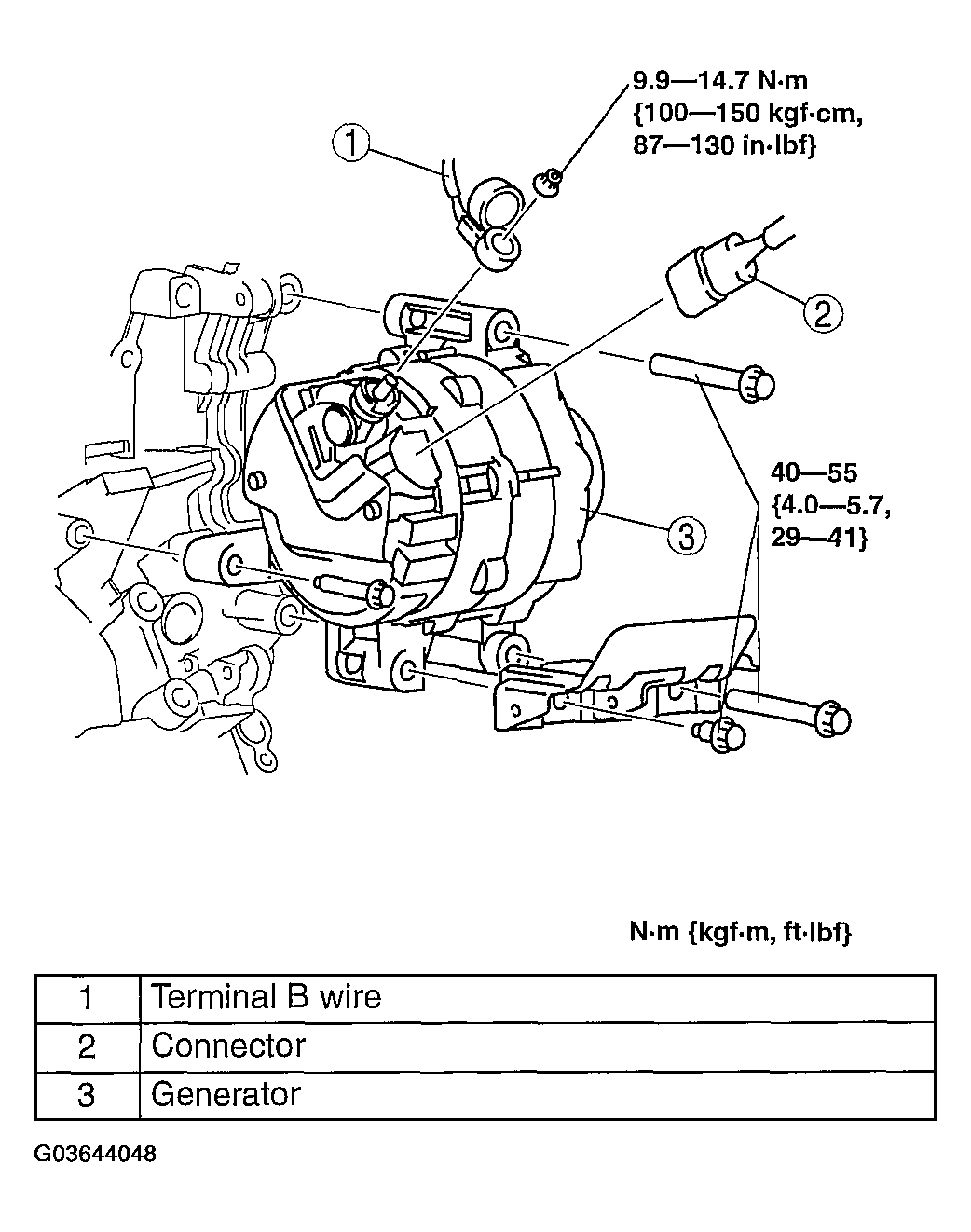

    Fig 1: Generator (Torque Specs)
    G03644048Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
