L3 (ATX): Notes

  1. Disassemble in the order indicated in the table.

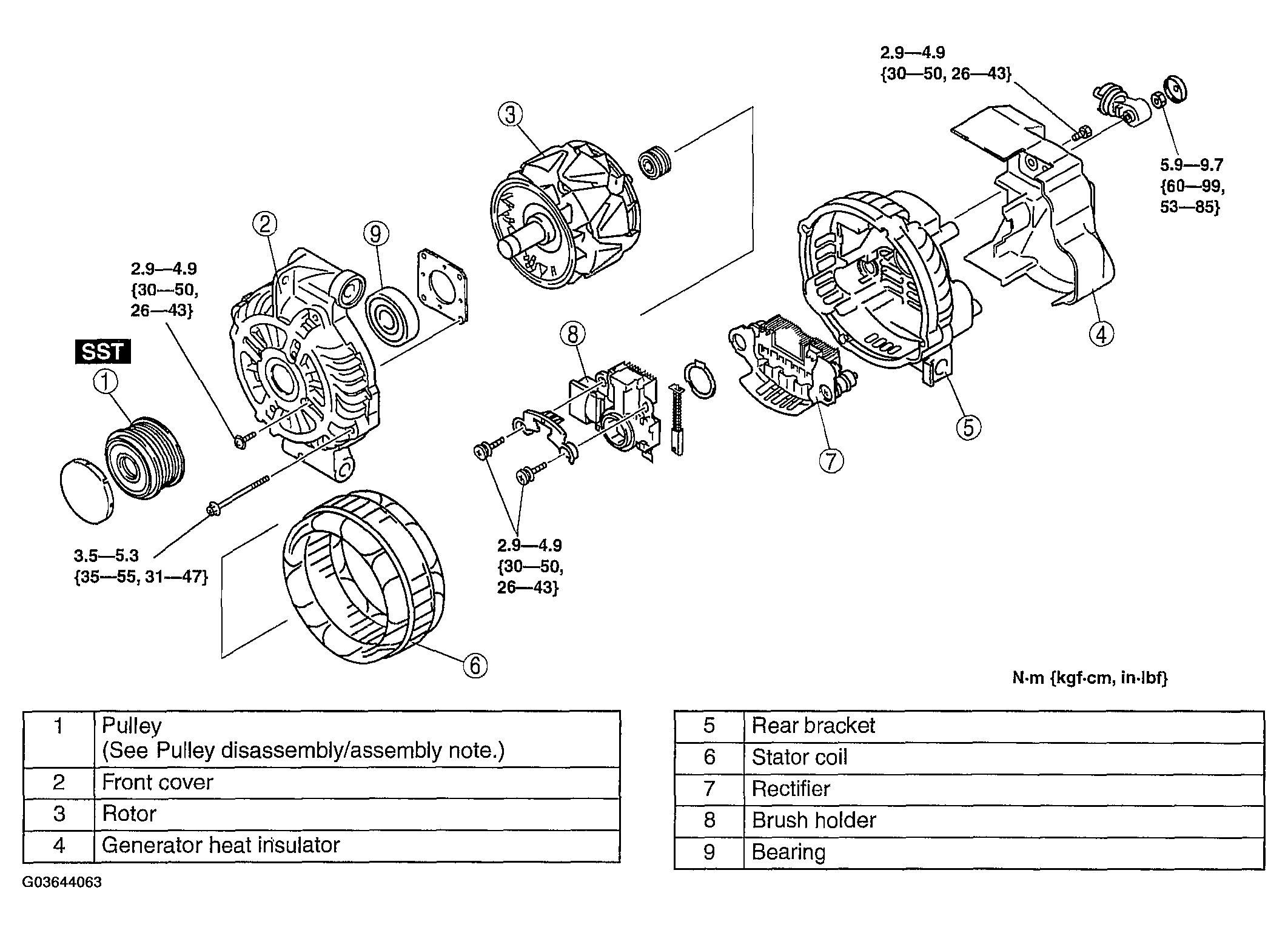

    Fig 1: Exploded View Of Generator (L3) (Torque Specs)
    G03644063Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
