Battery Removal/Installation

  1. Remove in the order indicated in the table.

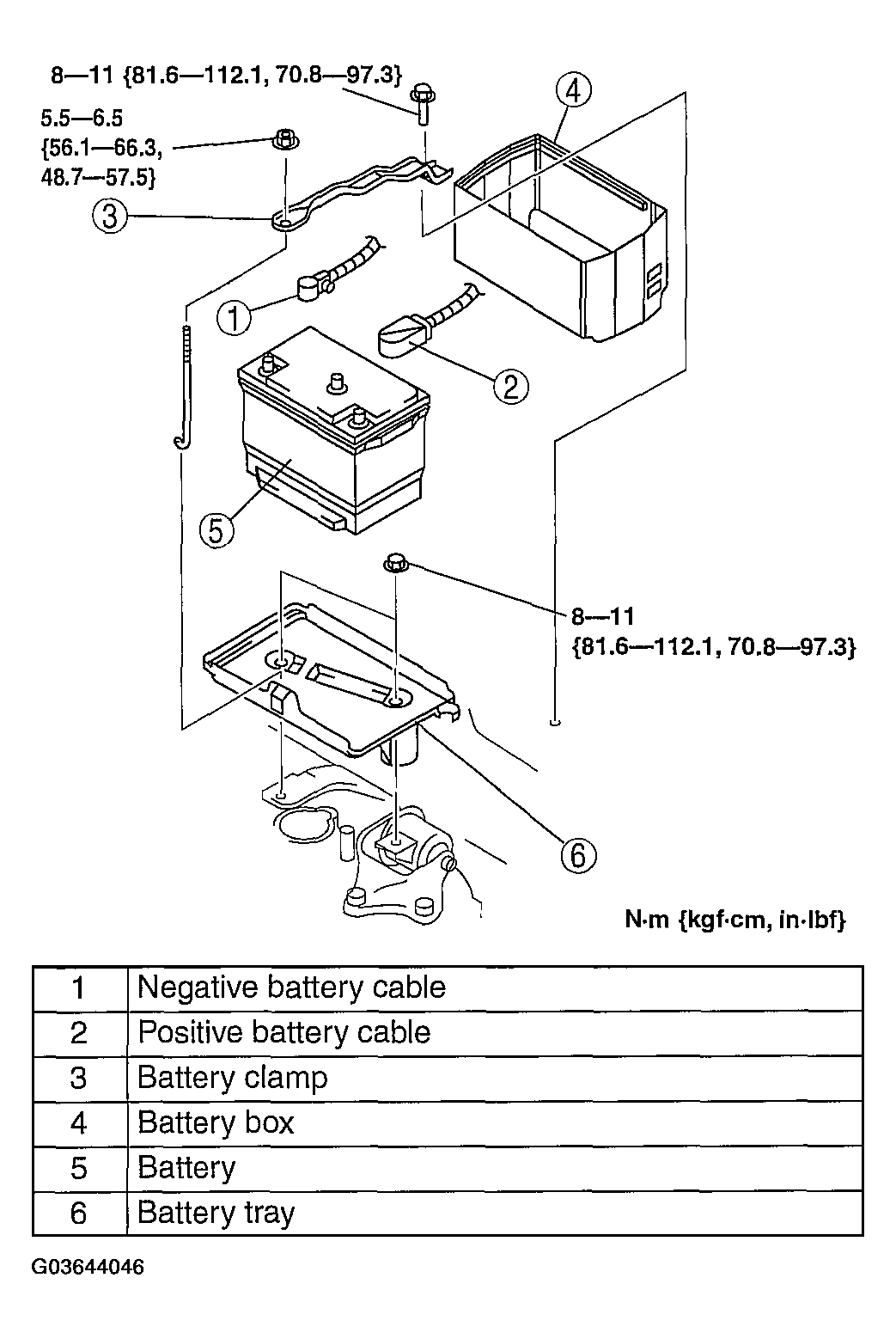

    Fig 1: Removing Battery (Torque Specs)
    G03644046Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
