Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the mud guard.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

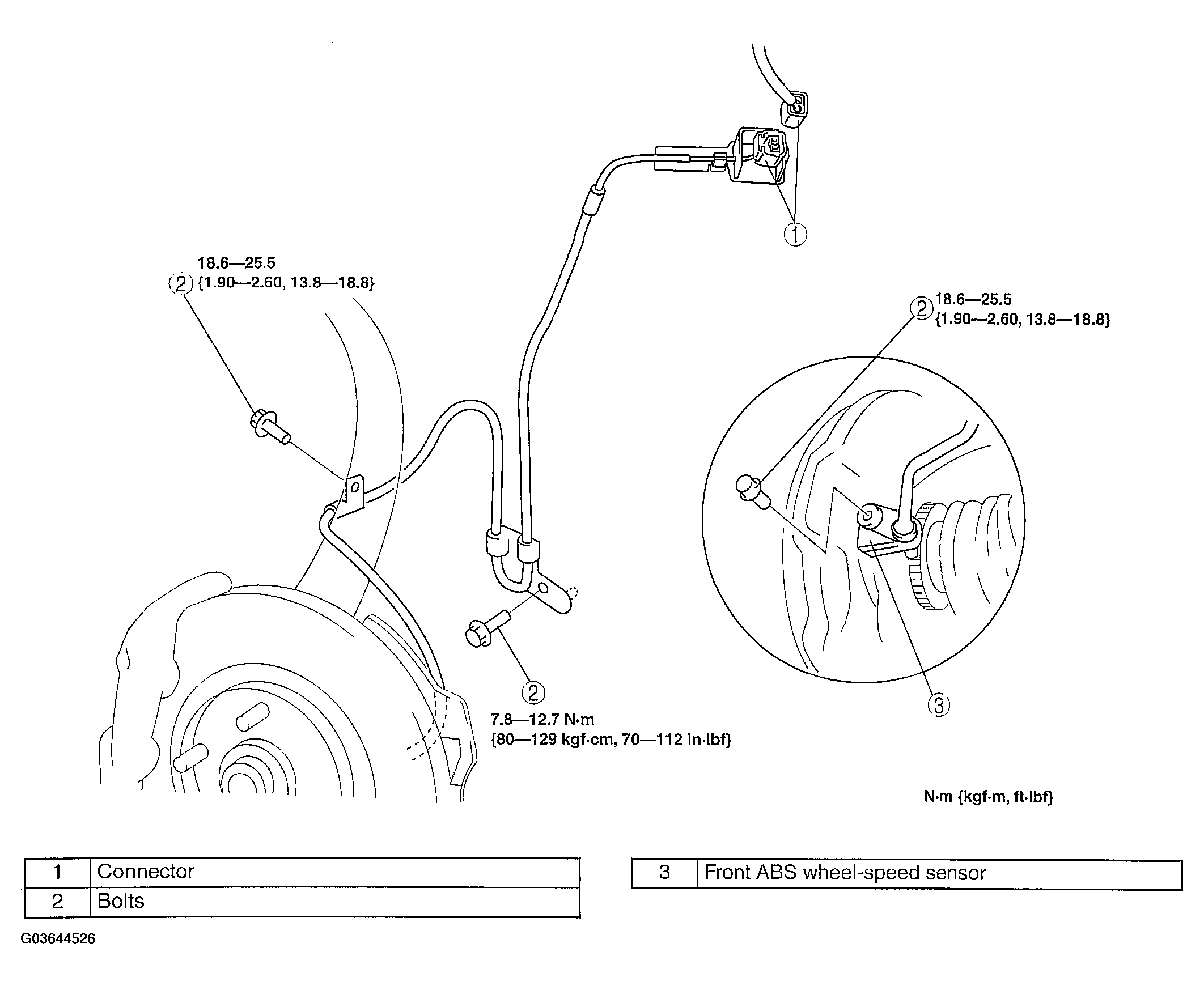

    Fig 1: Identifying Removal Order Of Front ABS Wheel-Speed Sensor (Torque specs)
    G03644526Courtesy of MAZDA MOTORS CORP.
