Mazda
>>
2005
>>
6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Abs/TCS System Diagram
Abs/TCS System Diagram

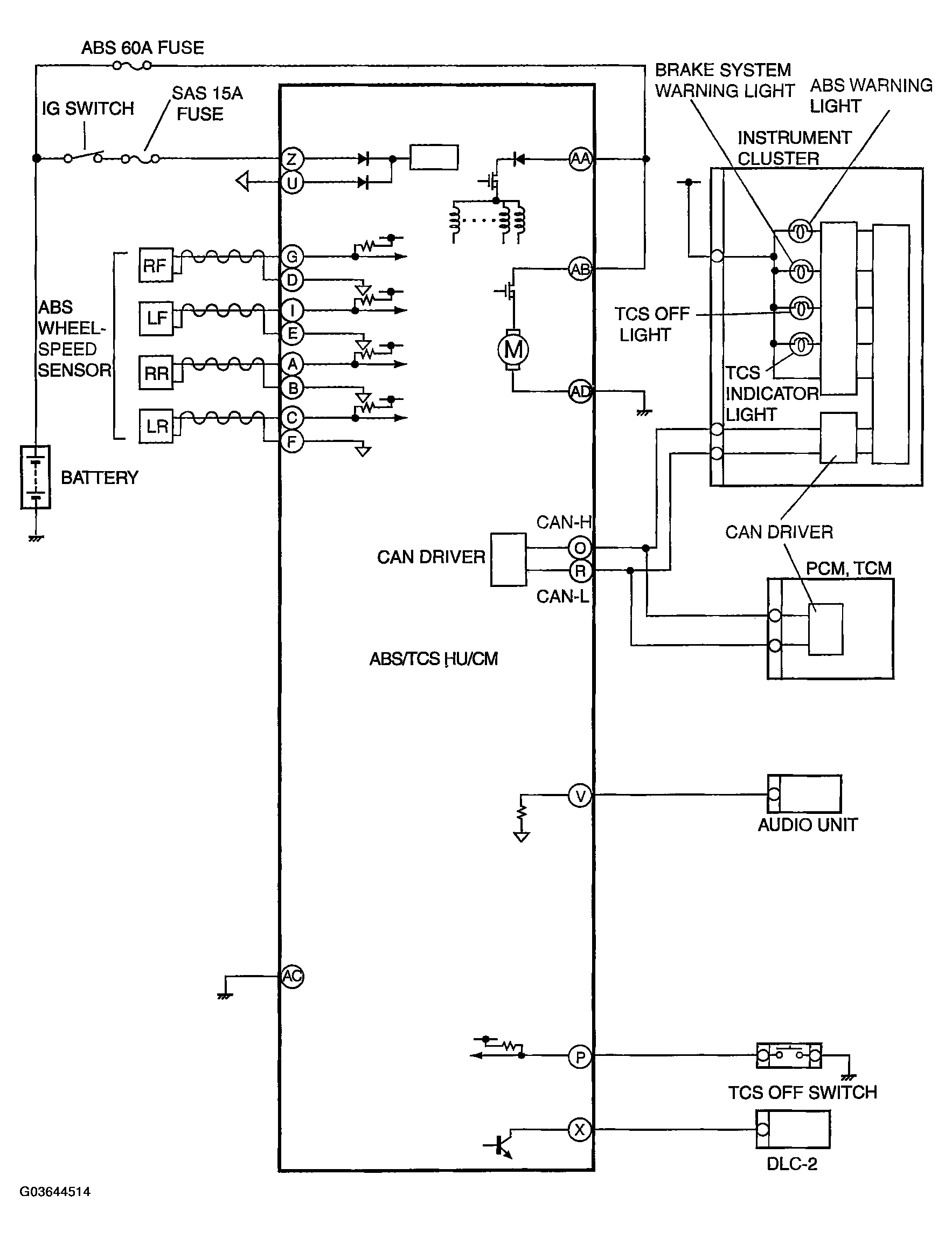

Fig 1: ABS/TCS System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
