Abs/TCS HU/Cm Inspection: Notes

  1. Disconnect the negative battery cable.
  2. Connect the SST  between the ABS/TCS HU/CM and harness connector with the ignition switch off.

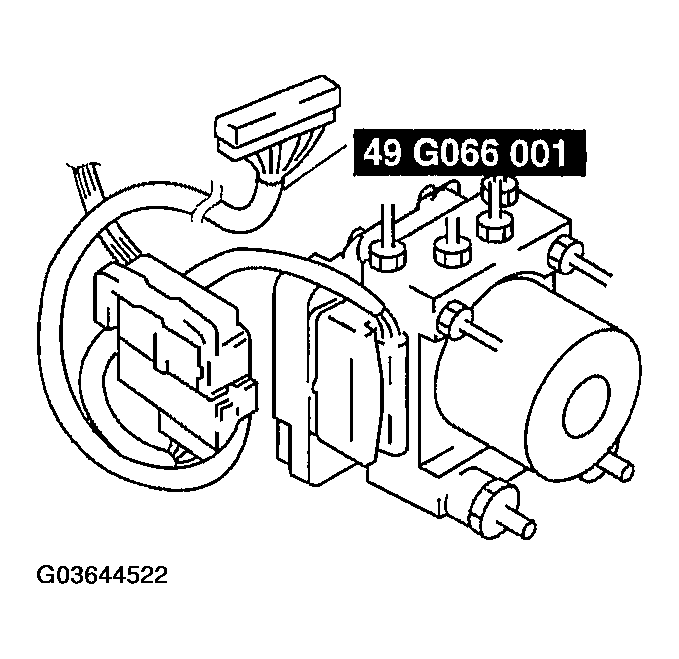

    Fig 1: Connecting SST Between ABS/TCS HU/CM And Harness Connector
    G03644522Courtesy of MAZDA MOTORS CORP.
  3. Attach the tester leads to the SST  and inspect voltage referring to the table below.
