Power Window SUBSWITCH Inspection

  1. Inspect for continuity between the power window subswitch terminals.
    • If not as specified, replace the power window subswitch.

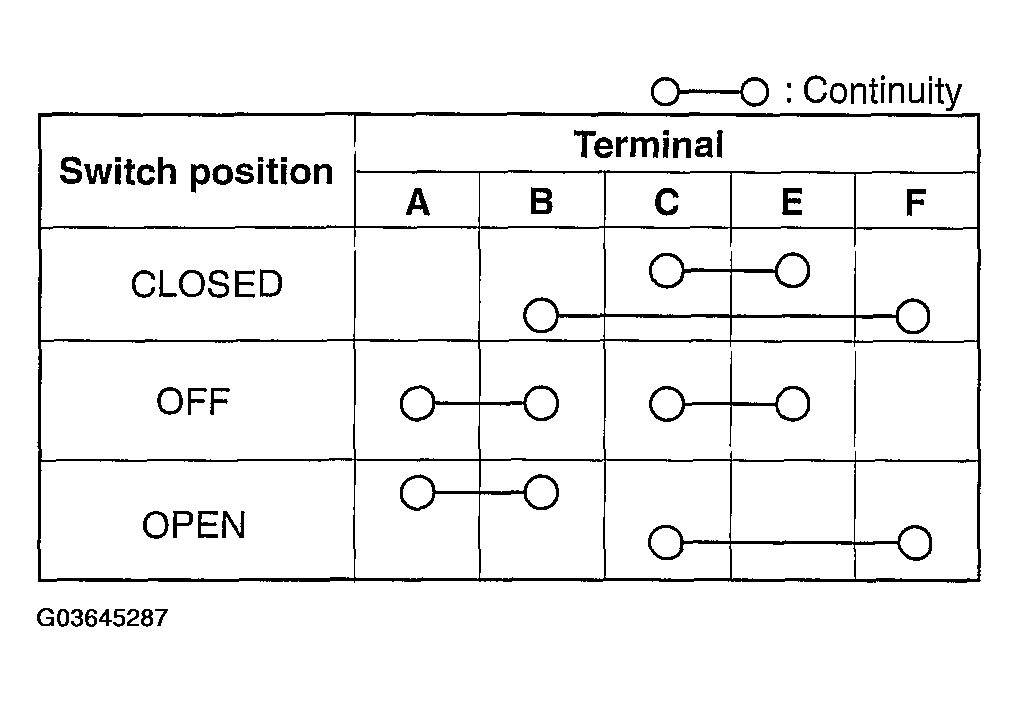

      Fig 1: Power Window Subswitch Continuity Table
      G03645287Courtesy of MAZDA MOTORS CORP.
      Fig 2: Power Window Subswitch Terminals And Connector
      G03645288Courtesy of MAZDA MOTORS CORP.
