Bolt Removal Note

  1. Press and remove the tabs on the main fuse block at the positions indicated by the arrows.

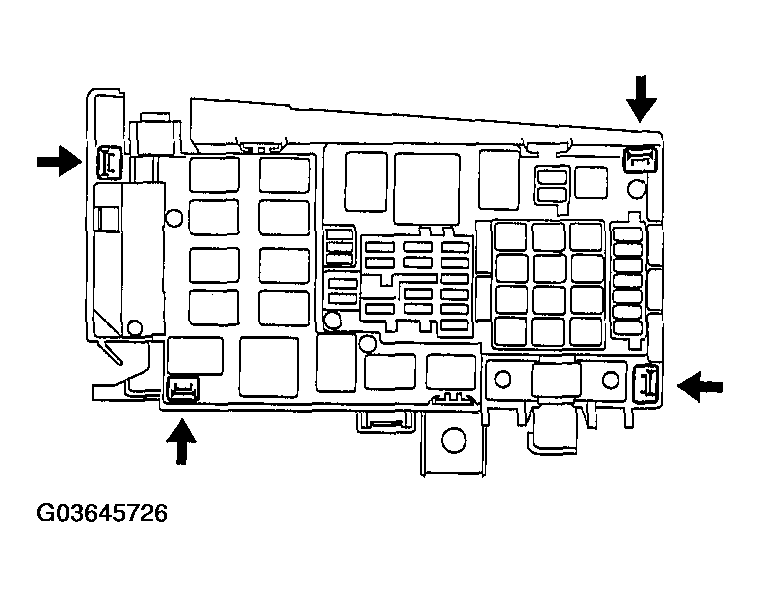

    Fig 1: Locating Tabs On Main Fuse Block
    G03645726Courtesy of MAZDA MOTORS CORP.
  2. Lift up the main fuse block and remove the bolts.

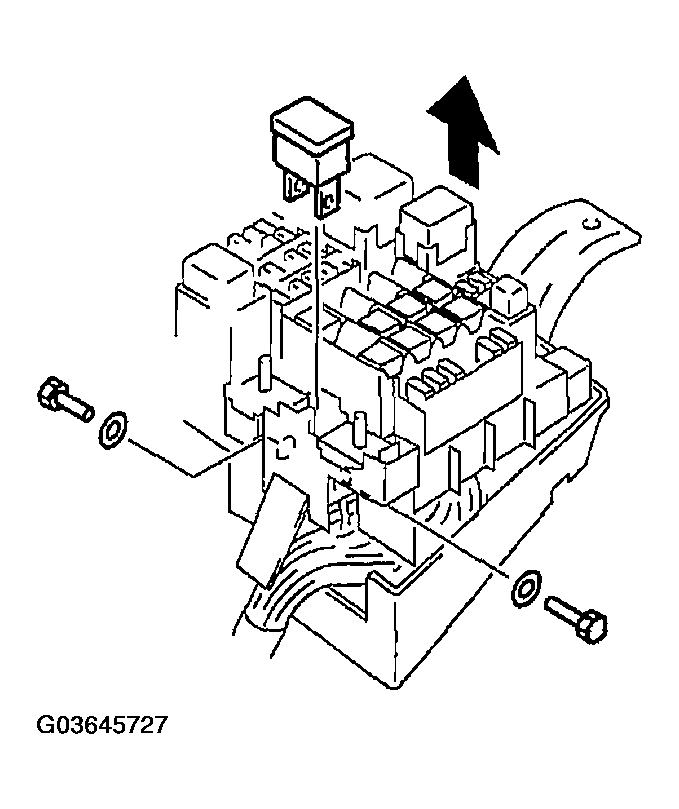

    Fig 2: Removing Main Fuse Bolts
    G03645727Courtesy of MAZDA MOTORS CORP.
