Ignition Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Disconnect the ignition switch connectors.
  4. Inspect for continuity between the ignition switch terminals using an ohmmeter.
    • If not as specified, replace the ignition switch.

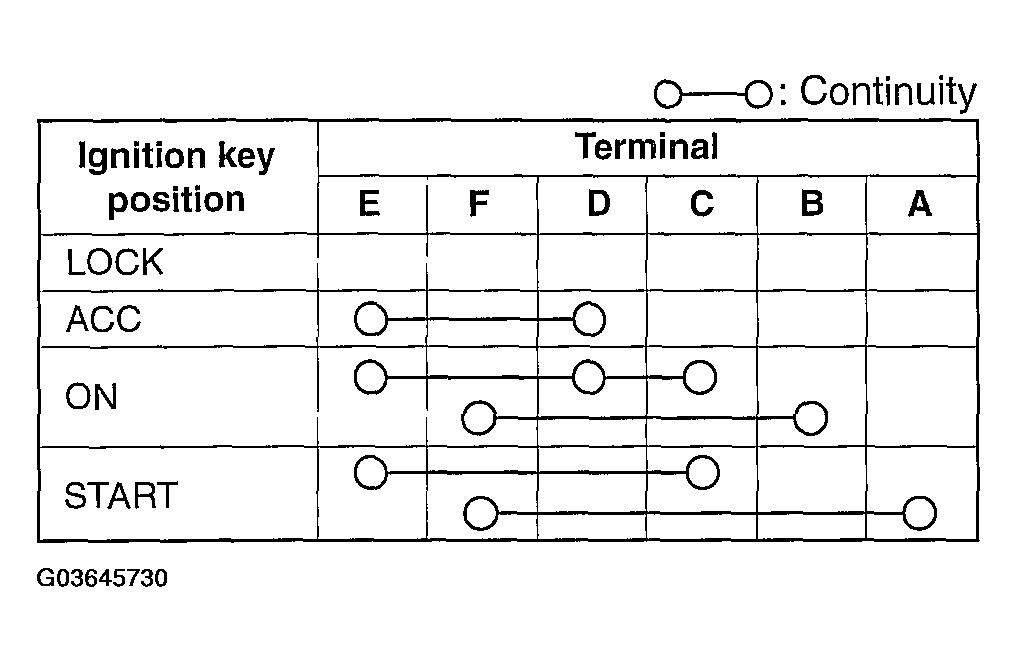

      Fig 1: Ignition Switch Continuity Table
      G03645730Courtesy of MAZDA MOTORS CORP.
      Fig 2: Ignition Switch Circuit Diagram And Connector Terminals
      G03645731Courtesy of MAZDA MOTORS CORP.
