Holder Disassembly Note

  1. Cut away the staked area by using a drill.
    CAUTION:
    • Carefully pull out the holder without damaging the U gasket.

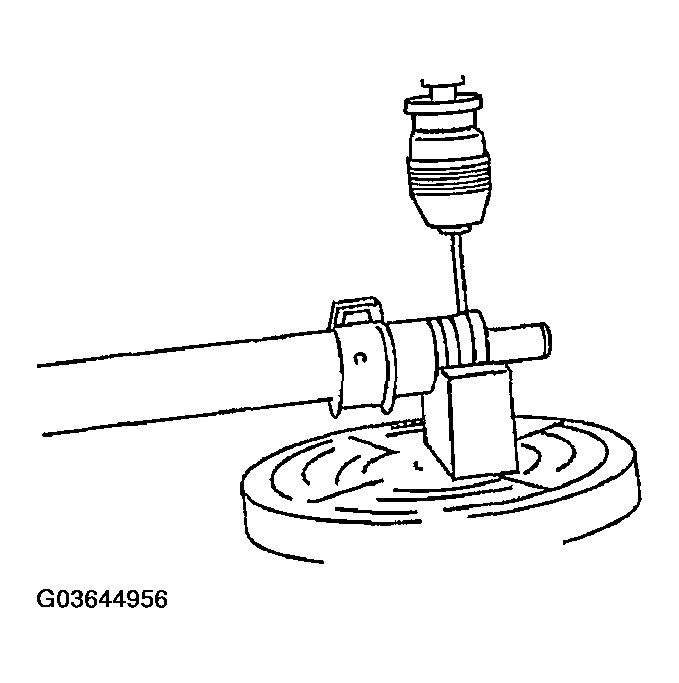

      Fig 1: Drilling Out Staked Area
      G03644956Courtesy of MAZDA MOTORS CORP.
  2. Disassemble the holder.
