Front Tilt Motor Inspection

  1. Disconnect the front tilt motor connector.
  2. Apply battery positive voltage to the front tilt motor terminals and inspect the front tilt motor operation
    • If not as specified, replace the front tilt motor.
      MOTOR OPERATION CHART

      Motor operation Connection
      B+ GND
      Up A B
      Down B A

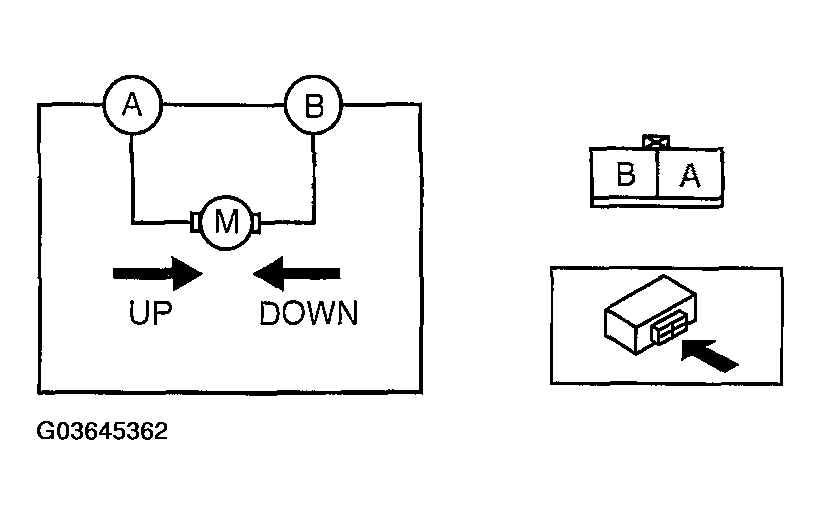

      Fig 1: Front Tilt Motor Circuit Diagram And Connector Terminals
      G03645362Courtesy of MAZDA MOTORS CORP.
