Refrigerant Lines Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING .)
  3. Remove the P/S fluid reserve tank.
  4. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
  5. Remove the P/S fluid hose bracket.
  6. Remove the under cover.
  7. Remove in the order indicated in the figure. Do not allow compressor oil to spill.
    CAUTION:
    • If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
  8. Install in the reverse order of removal.

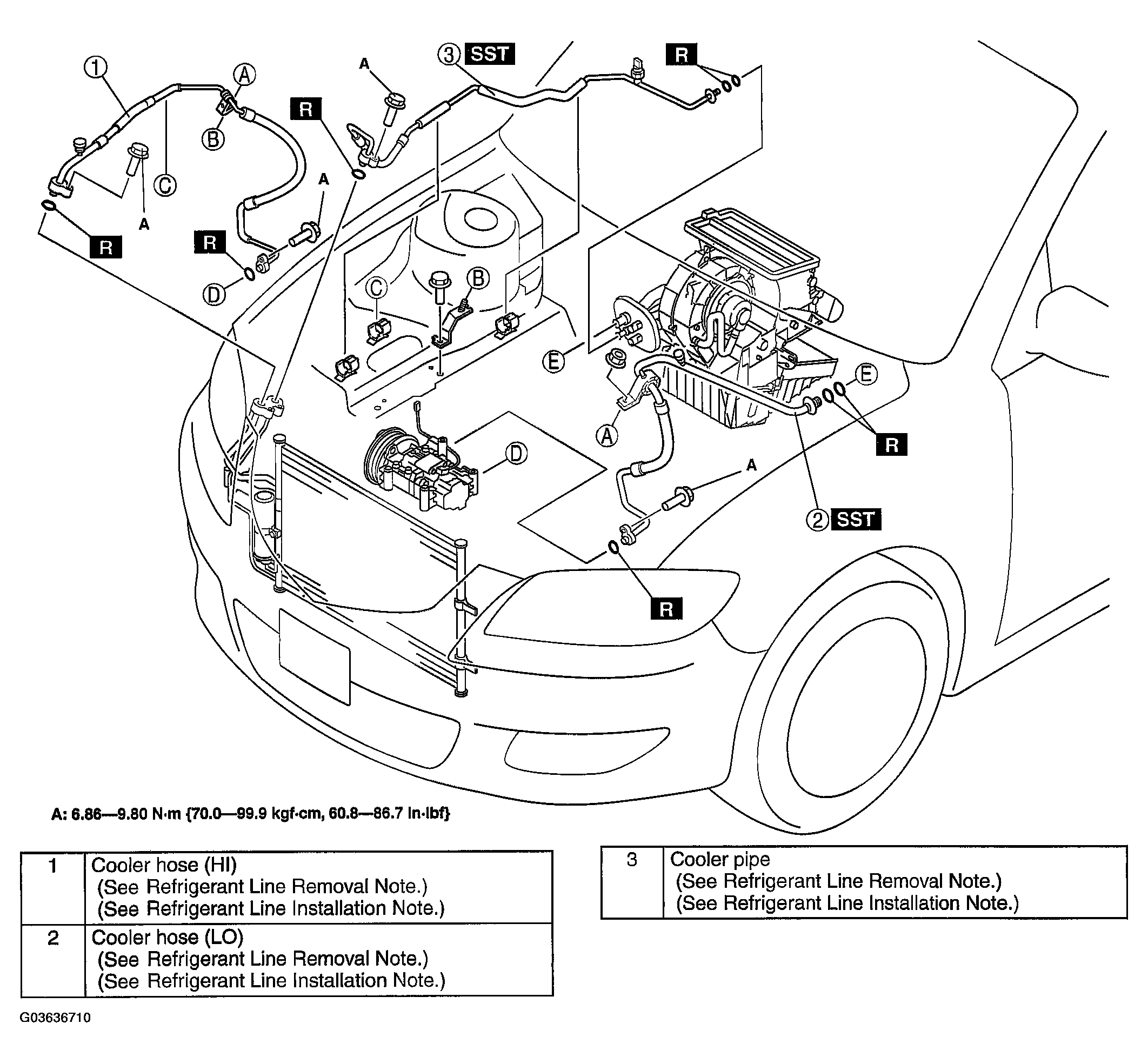

    9. Fig 1: Refrigerant Lines Removal/Installation & Tightening Specifications
    G03636710Courtesy of MAZDA MOTORS CORP.
  9. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
