Sensor Clamp Assembly Note

  1. Attach the sensor clamp as shown in the figure.

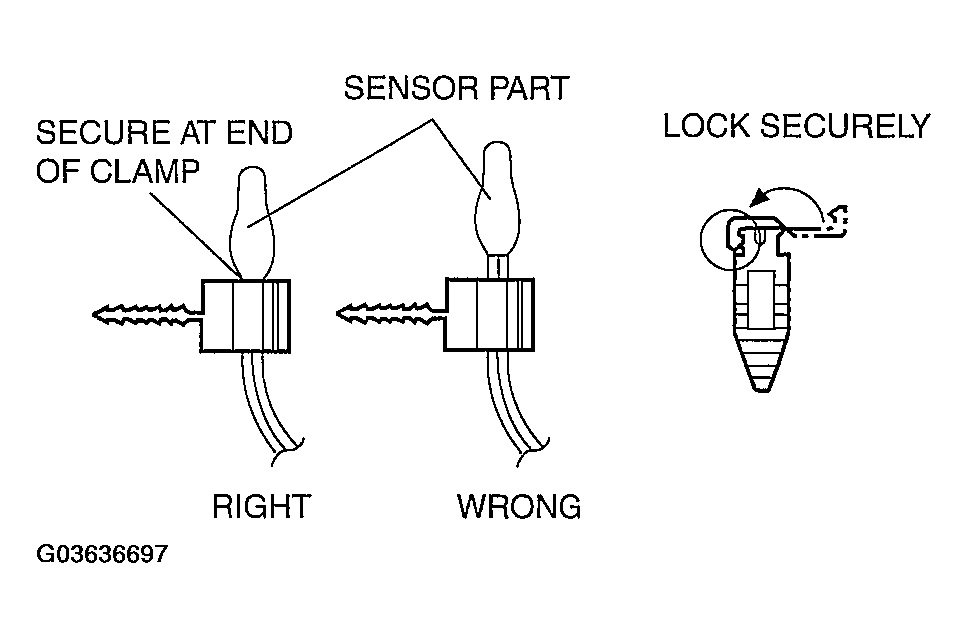

    Fig 1: Attaching Sensor Clamp
    G03636697Courtesy of MAZDA MOTORS CORP.
