Evaporator Temperature Sensor Assembly Note
Evaporator Temperature Sensor Assembly Note
Assemble the evaporator temperature sensor as shown in the figure.

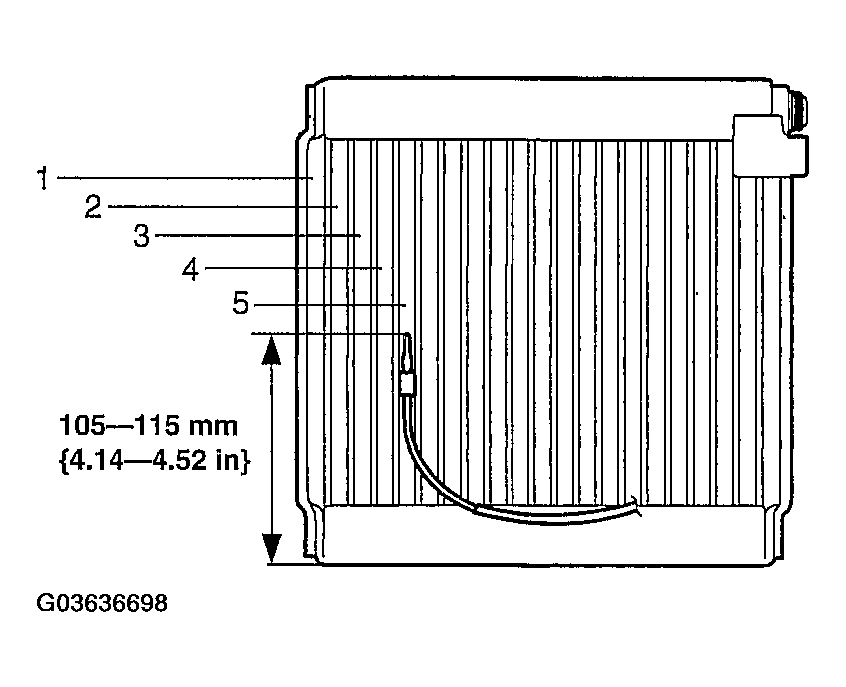

Fig 1: Installing Evaporator Temperature Sensor Assembly
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
