Parking Brake Lever Removal/Installation: Notes

  1. Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  2. Remove the heat insulator.
  3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the figure.
  5. Install in the reverse order of removal.

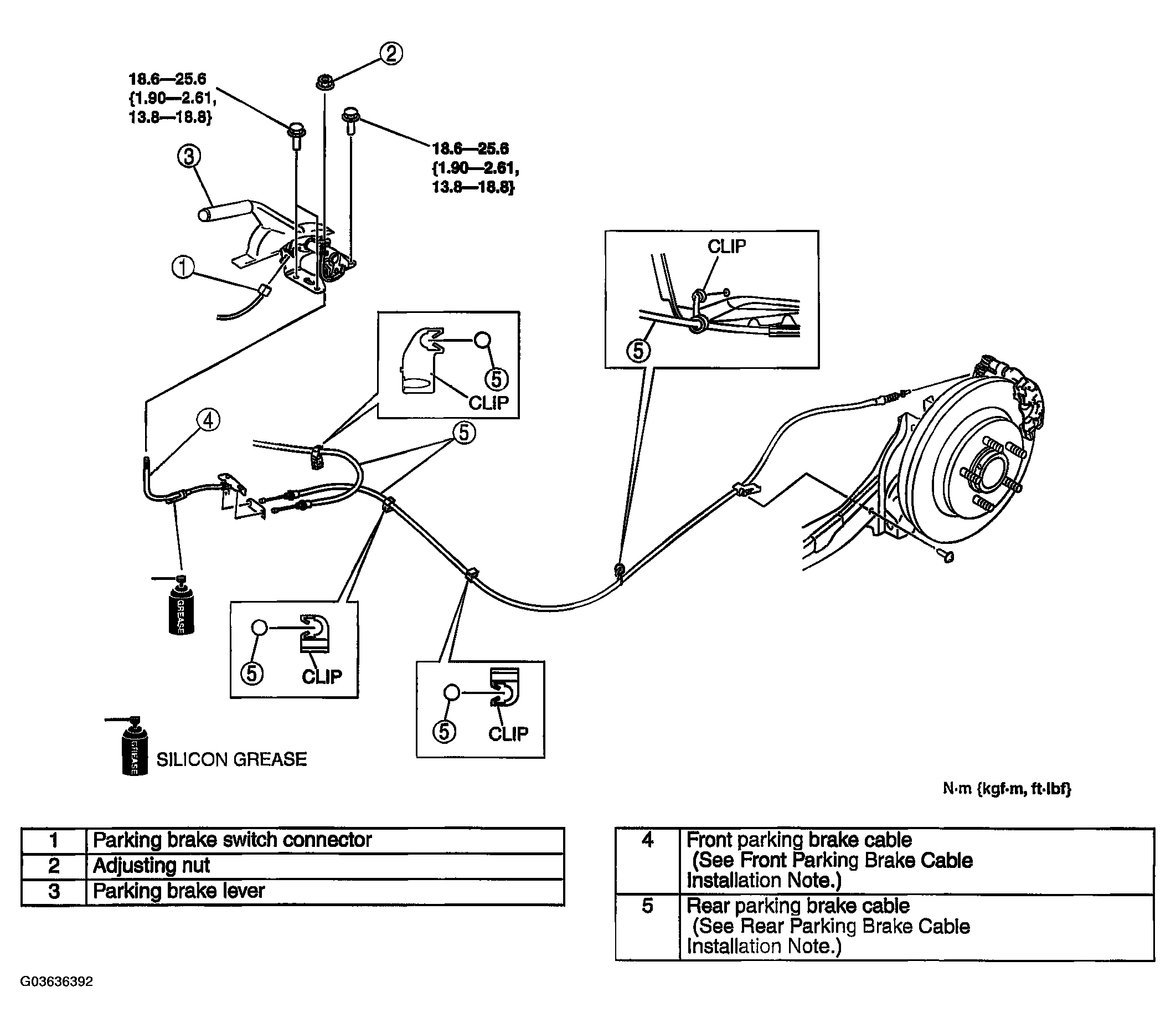

    6. Fig 1: Parking Brake Lever Removal/Installation & Tightening Specifications
    G03636392Courtesy of MAZDA MOTORS CORP.
  6. After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION  )
