Rear Drip Assembly Note

NOTE:
  • If the rear drip is removed, butyl seal must be applied when re-installing.
  1. Apply a 6.0-8.0 mm {0.24-0.31 in}  wide line of butyl seal to the area shown in the figure.

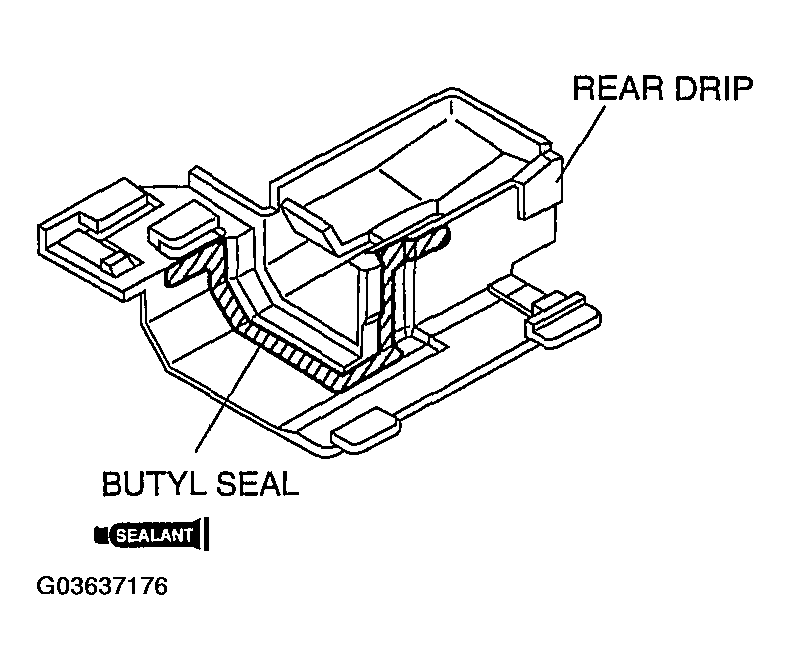

    Fig 1: Removing Rear Drip Assembly
    G03637176Courtesy of MAZDA MOTORS CORP.
