Seat Warmer Unit Inspection

  1. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION  )
  2. Remove the seat cushion trim. (See FRONT SEAT DISASSEMBLY/ASSEMBLY  )
  3. While inspecting for continuity between the terminals A and B of the connector, use a dryer to warm the thermostat of the seat warmer unit on seat cushion.

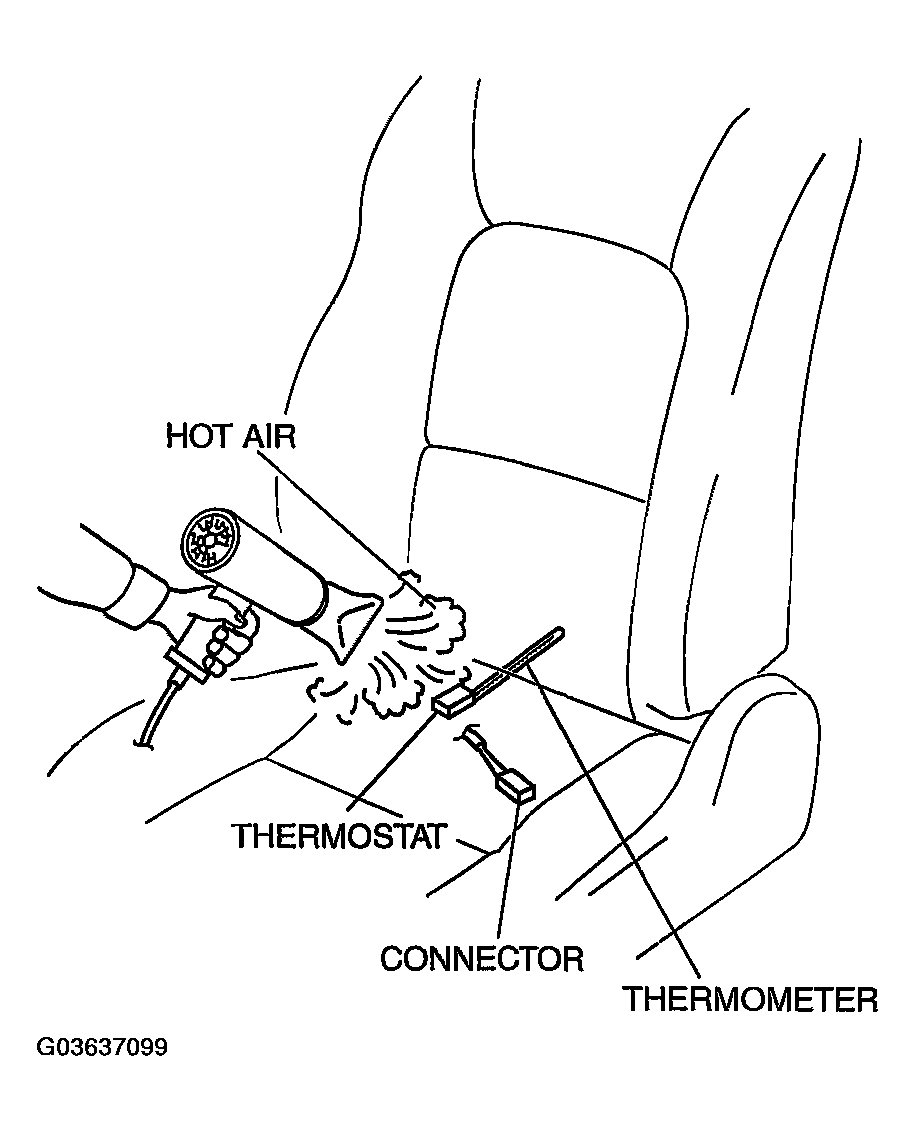

    Fig 1: Heating Seat Warmer Thermostat
    G03637099Courtesy of MAZDA MOTORS CORP.
  4. Verify that the continuity between the seat warmer terminals is as indicated in the table.
    • If not as indicated in the figures, replace the seat warmer switch.

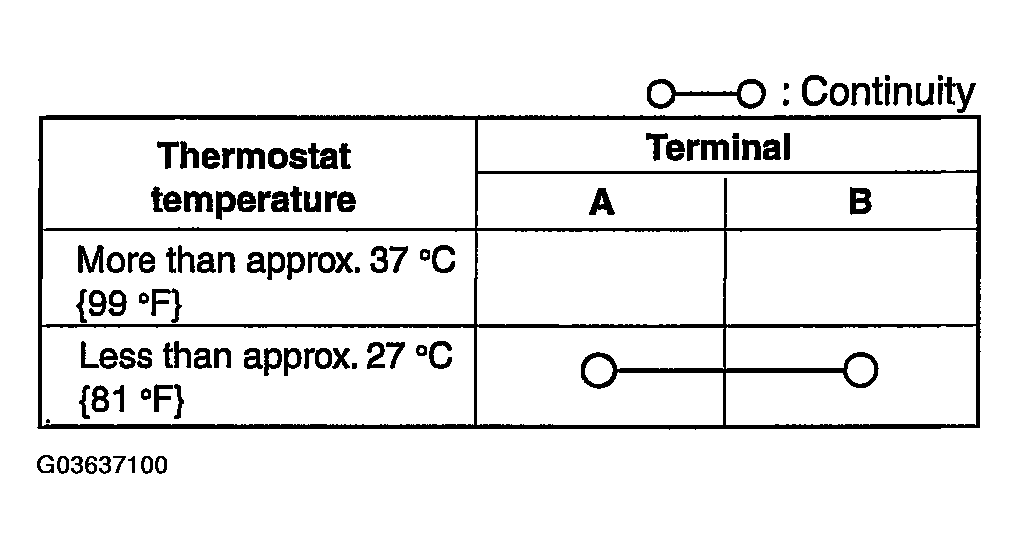

    Fig 2: Seat Warmer Temperature/Continuity Specifications
    G03637100Courtesy of MAZDA MOTORS CORP.

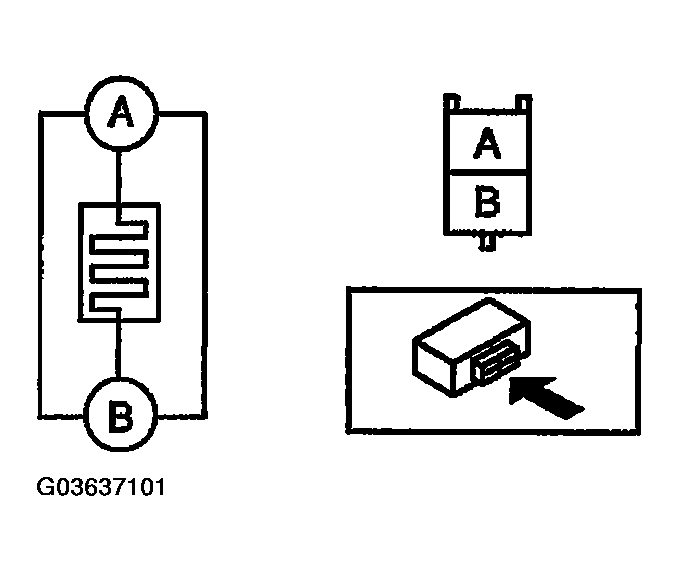

    Fig 3: Identifying Seat Warmer Connector Terminals
    G03637101Courtesy of MAZDA MOTORS CORP.
