Seat Warmer Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the ashtray panel. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
  4. Squeeze the tabs of seat warmer switch and pull it outward to remove it.
  5. Install in the reverse order of removal.

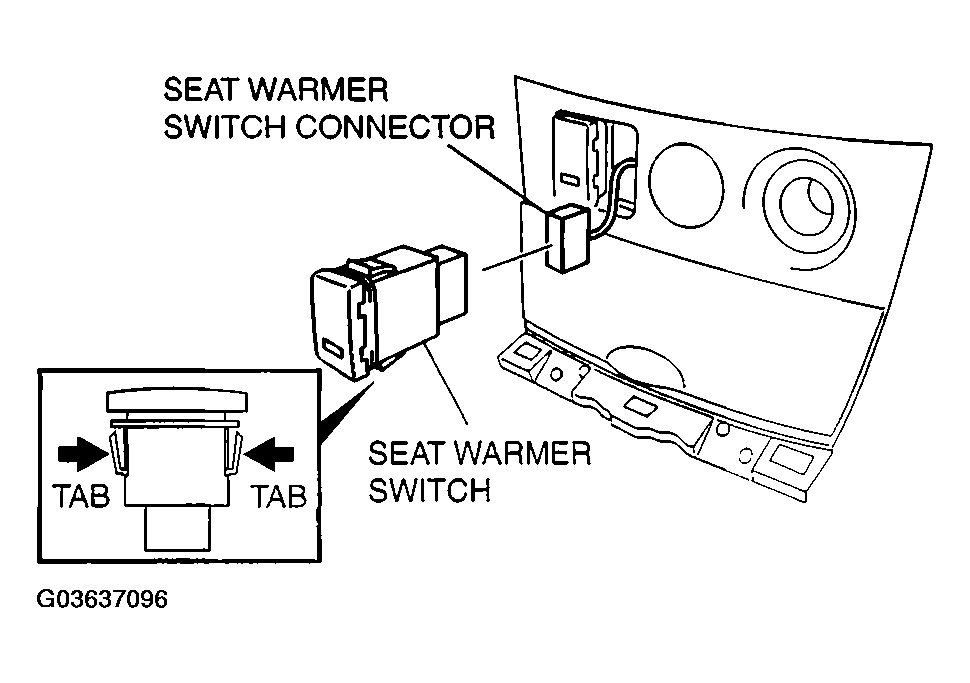

    Fig 1: Seat Warmer Switch Removal/Installation
    G03637096Courtesy of MAZDA MOTORS CORP.
