Seat Warmer Switch Inspection

  1. Verify that the continuity between the seat warmer switch terminals is as indicated in the figures.
    • If not as indicated in the table, replace the seat warmer switch.

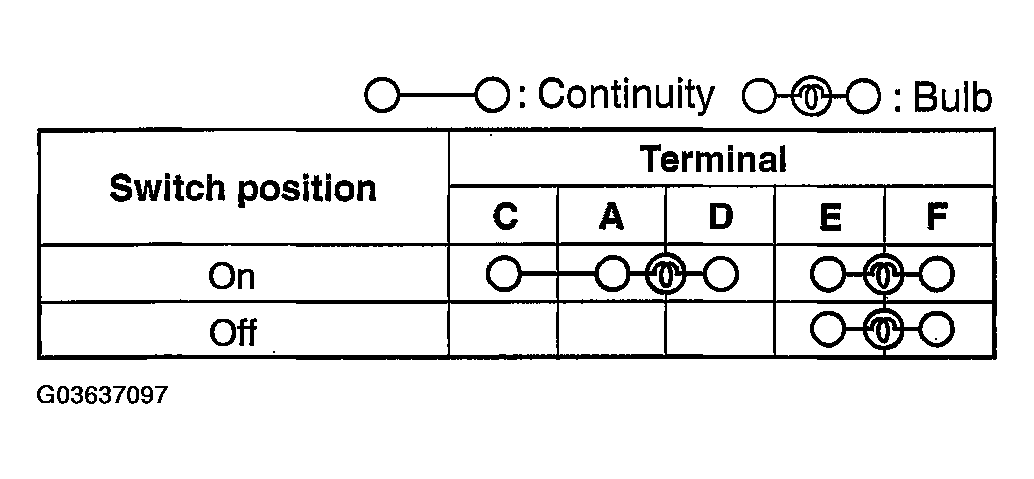

    Fig 1: Seat Warmer Switch Continuity Specifications
    G03637097Courtesy of MAZDA MOTORS CORP.

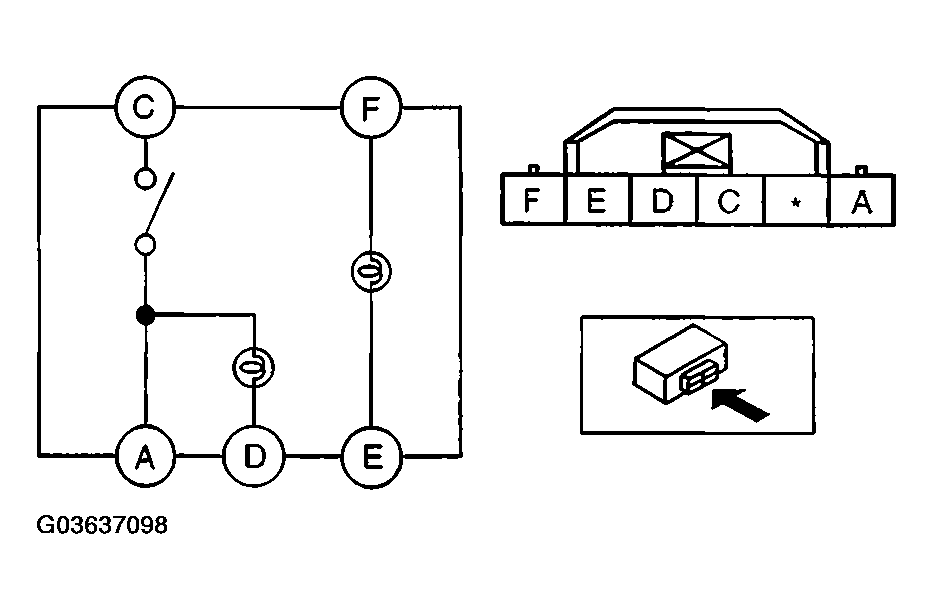

    Fig 2: Identifying Seat Warmer Switch Connector Terminals
    G03637098Courtesy of MAZDA MOTORS CORP.
