Rear Seat Removal/Installation

  1. Lift points A in the direction of the arrows and remove the rear seat cushion.

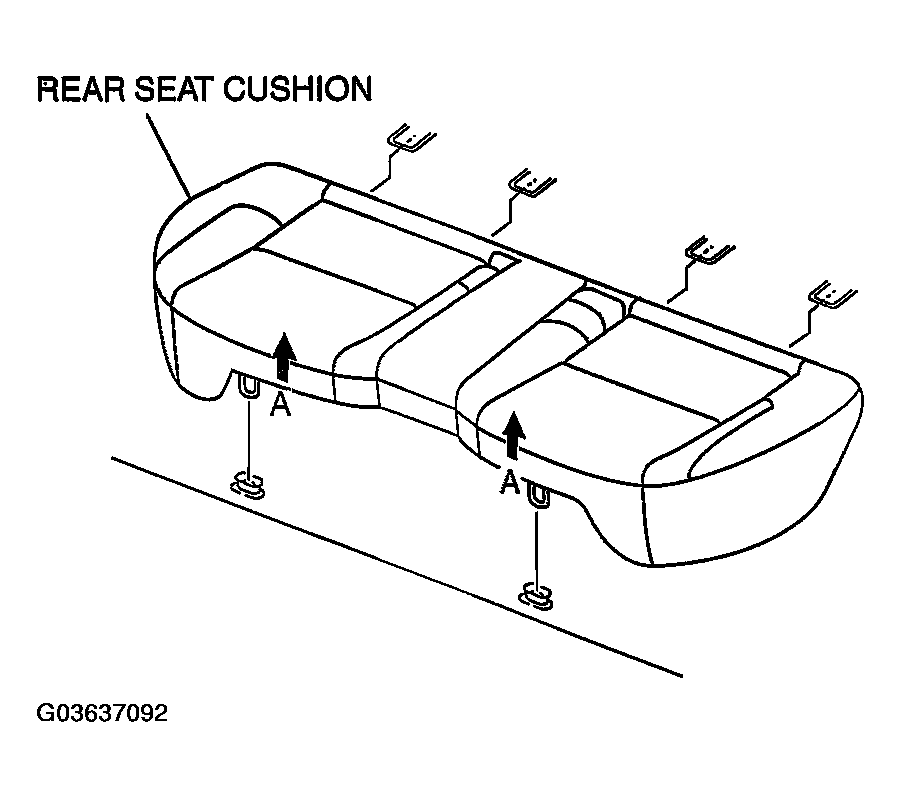

    Fig 1: Removing Rear Seat Cushion
    G03637092Courtesy of MAZDA MOTORS CORP.
  2. Fold the rear seat back.
  3. Remove the bolts.

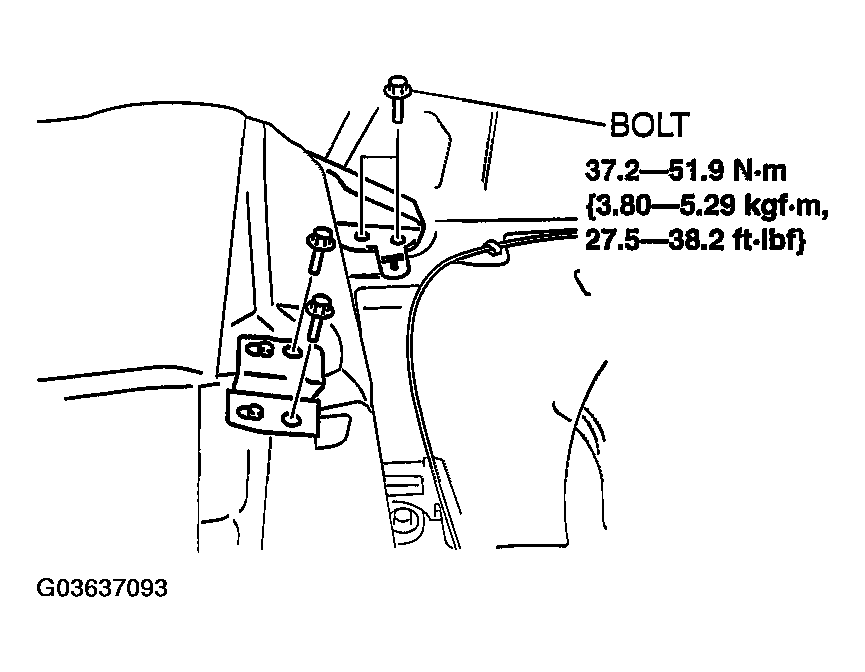

    Fig 2: Rear Seat Bolt Removal/Installation & Tightening Specifications
    G03637093Courtesy of MAZDA MOTORS CORP.
  4. Raise the rear seat back in the direction of the arrows and detach the connecting part between the rear seat back and bracket.
  5. Remove the rear seat back.
  6. Install in the reverse order of removal.

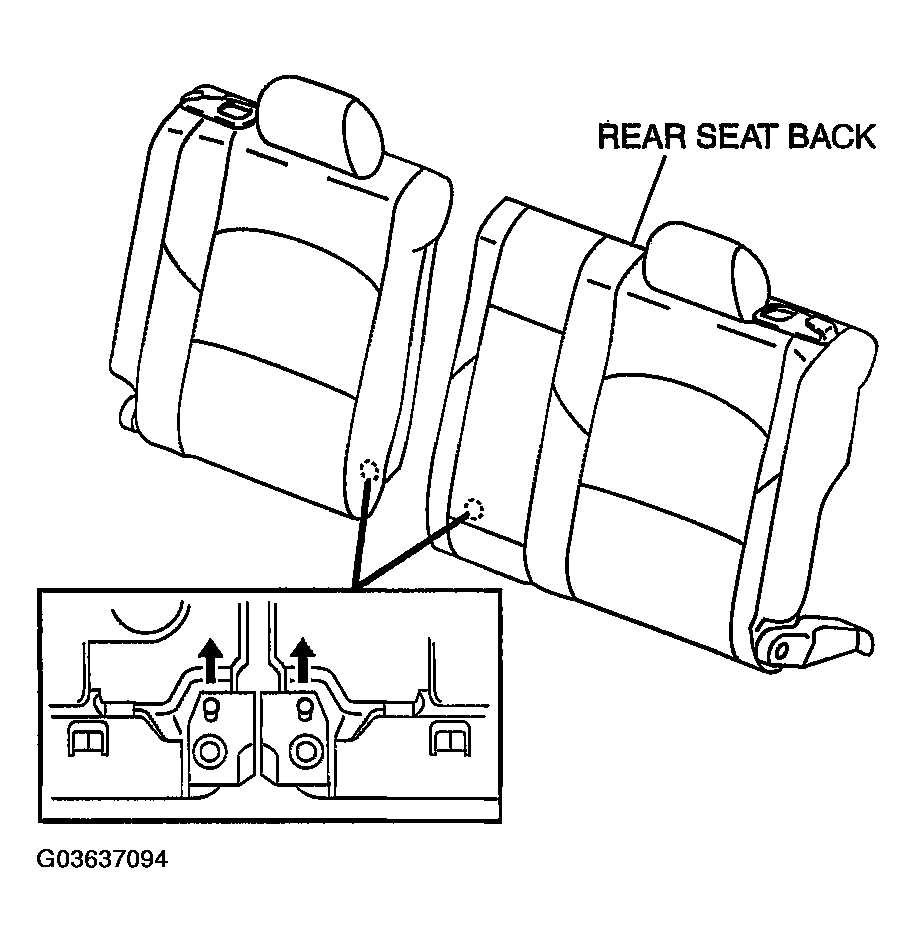

    Fig 3: Removing Rear Seat Back
    G03637094Courtesy of MAZDA MOTORS CORP.
