Steering Gear And Linkage Removal/Installation
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor connector (axle side) and fix the wiring harness to the appropriate place where it will not be pulled by mistake while servicing the vehicle.
- Remove the front crossmember, lower arm, front stabilizer, and steering gear and linkage as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)

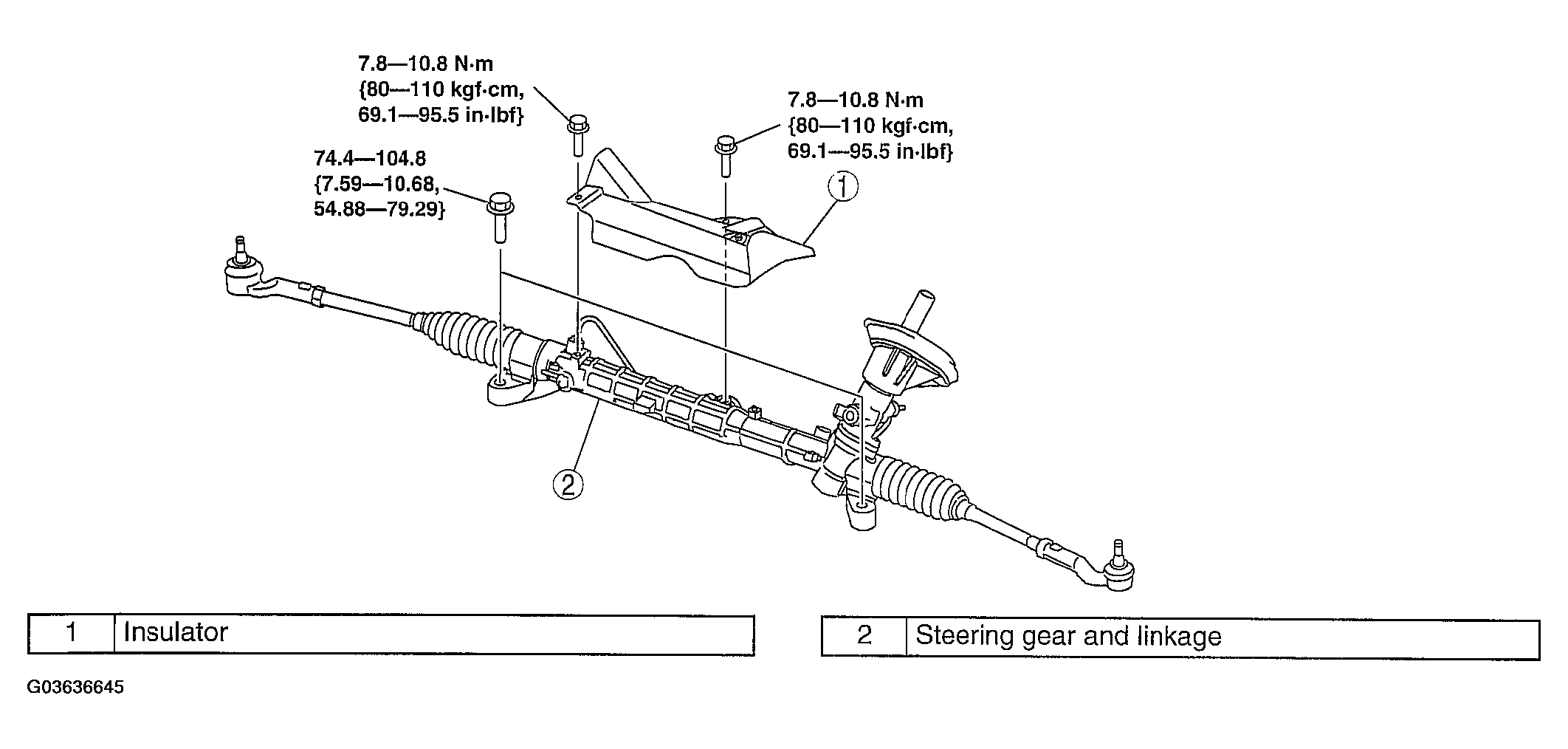

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
- After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)
