Tie-Rod End Disassembly Note

  1. Place alignment marks as shown in the figure for proper installation.

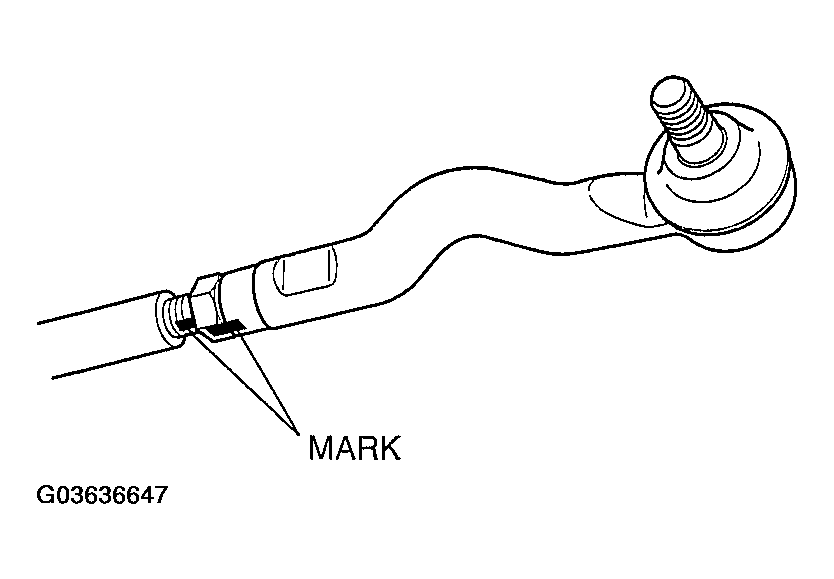

    Fig 1: Match-Marking Tie-Rod/Tie-Rod End
    G03636647Courtesy of MAZDA MOTORS CORP.
