Starter Interlock Switch Inspection [MTX]

CAUTION:
  • Do not reuse the starter interlock switch if it is removed from the vehicle even once. Please replace with a new starter interlock switch when installing.
  1. Disconnect the negative battery cable.
  2. Disconnect the starter interlock switch connector.
  3. Verify that the resistance is as indicated in the figure using the tester.
    • If the continuity is not as indicated in the figure, replace the starter interlock switch.

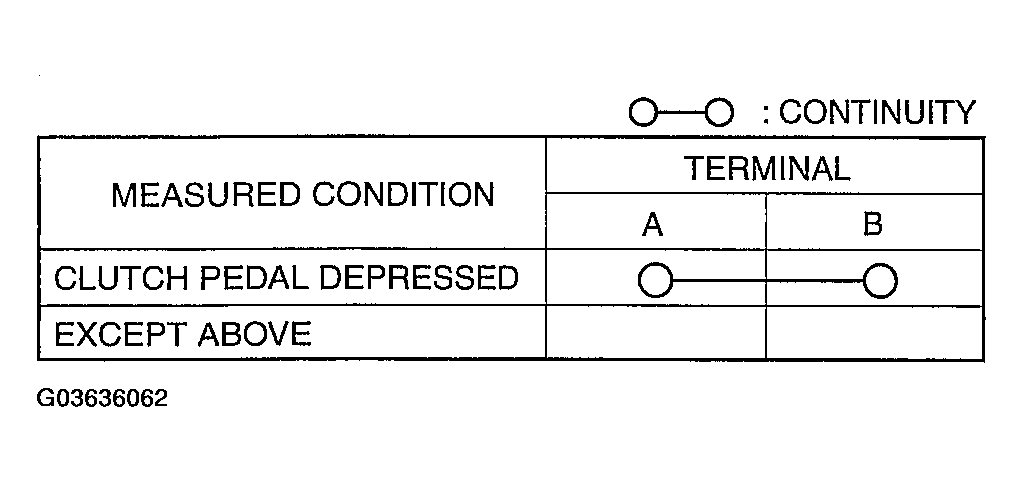

    Fig 1: Starter Interlock Switch Connector Terminal Continuity Table
    G03636062Courtesy of MAZDA MOTORS CORP.
    Fig 2: Identifying Starter Interlock Switch Connector
    G03636063Courtesy of MAZDA MOTORS CORP.
