Panel Light Control Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Detach the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  3. Remove the front scuff plate. (Driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  4. Remove the front side trim. (Driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  5. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
  6. Remove the panel light control switch.
  7. Disconnect the panel light control switch connector.
  8. Install in the reverse order of removal.

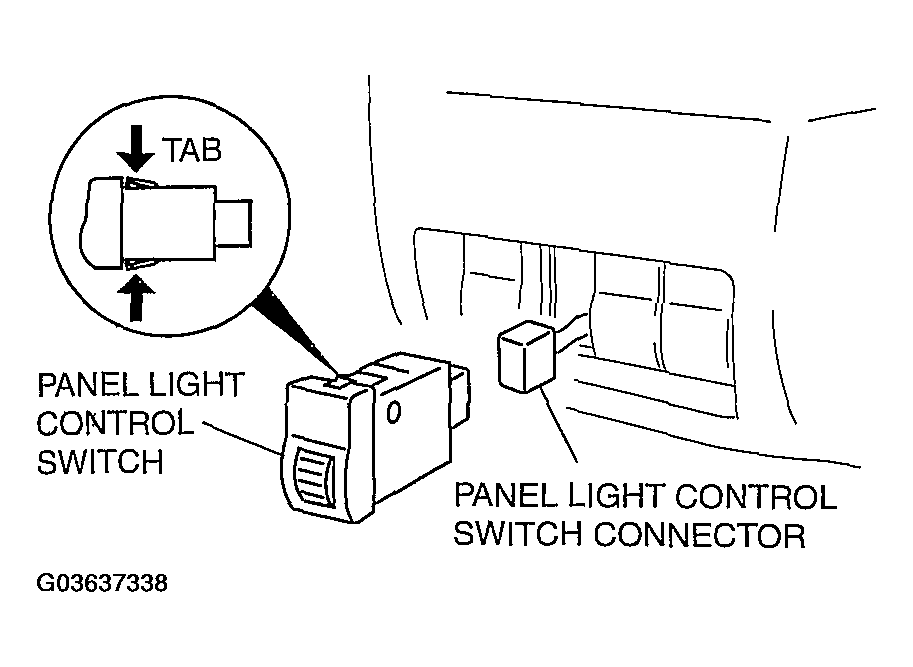

    Fig 1: Panel Light Control Switch Removal/Installation
    G03637338Courtesy of MAZDA MOTORS CORP.
