Map Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Insert a tape-wrapped flathead screwdriver into the gap between the headliner and the map light.
  3. Press the tab and remove the map light.

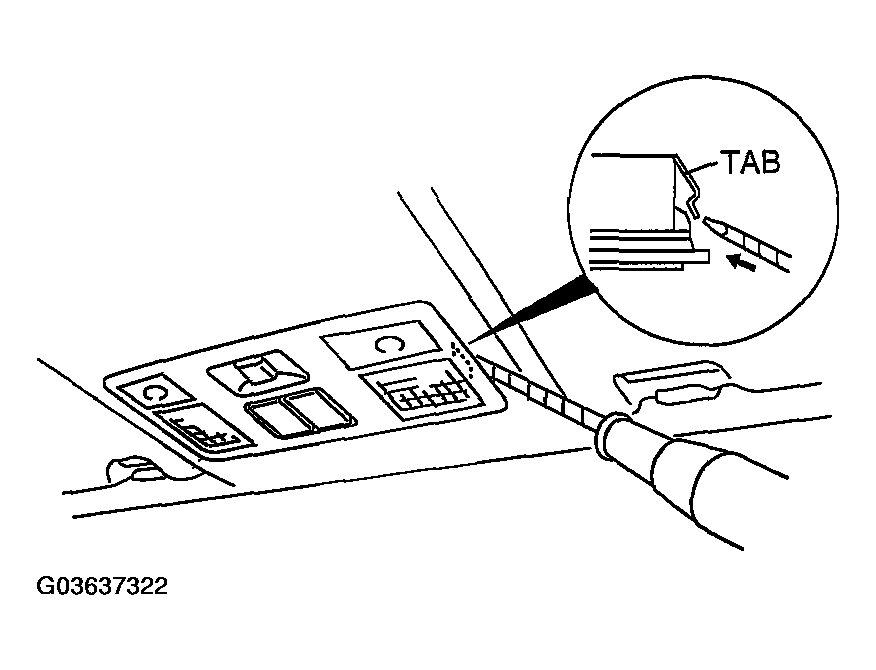

    Fig 1: Pressing Tab And Removing Map Light
    G03637322Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the map light connector.
  5. Remove the socket, then remove the map light bulb.

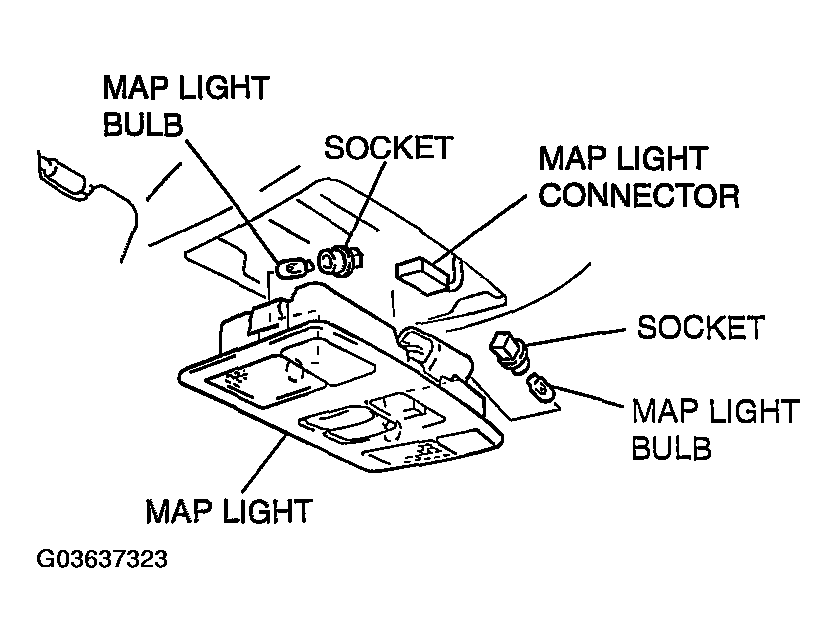

    6. Fig 2: Disconnecting Map Light Connector & Removing Bulbs
    G03637323Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
