Map Light Inspection

Verify that the continuity between the map light terminals is as indicated in the figure.
- If not as indicated in the figure, replace the map light.

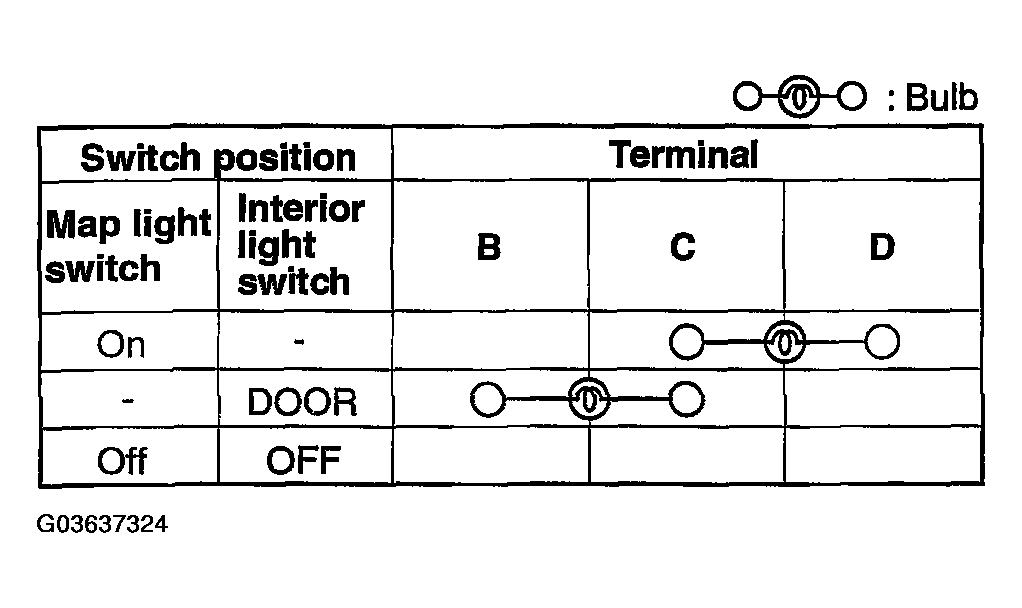

Fig 1: Map Light Bulb Inspection
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Map Light Connector Terminals
Courtesy of MAZDA MOTORS CORP.
