Inboard Light Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim. (4 door) (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Remove the service hole cover. (5 door)
  4. Remove in the order indicated in the figure.
  5. Install in the reverse order of removal.

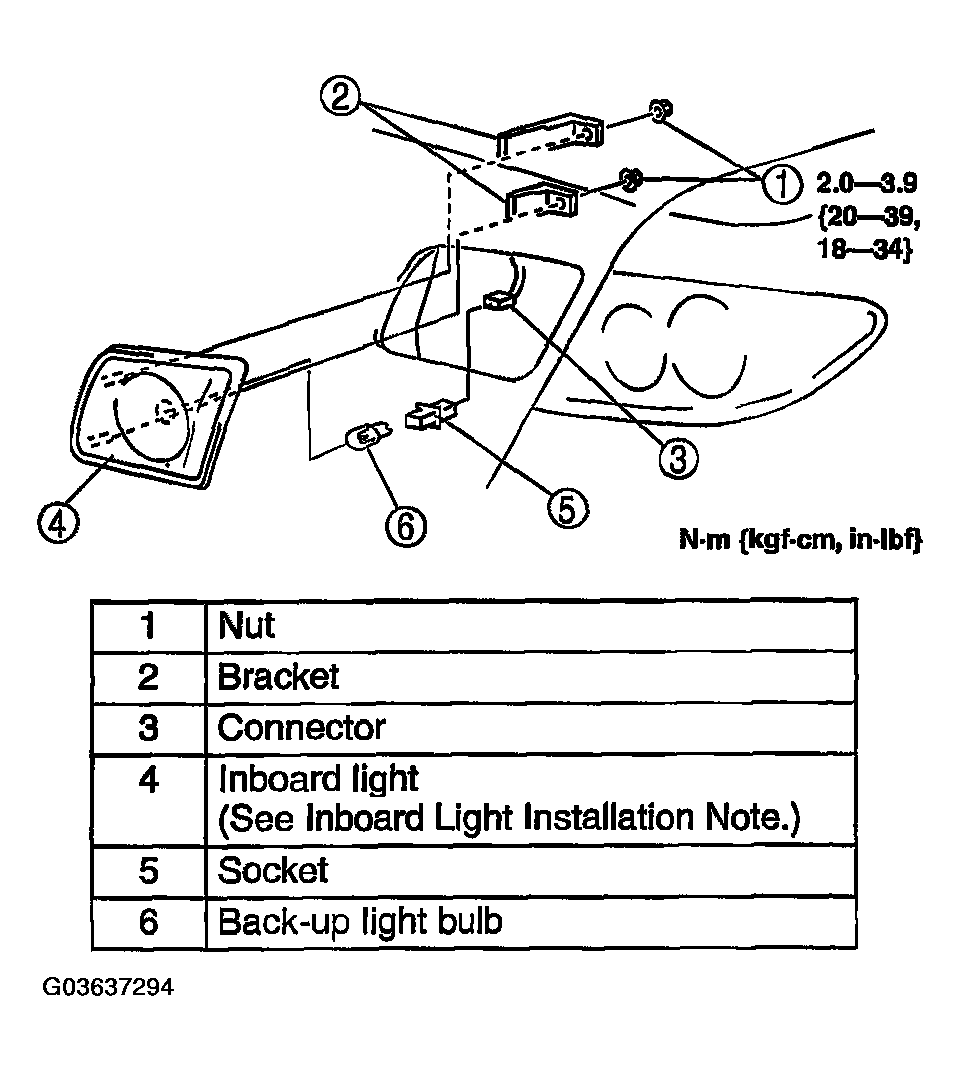

    6. Fig 1: Inboard Light Removal/Installation & Tightening Specifications
    G03637294Courtesy of MAZDA MOTORS CORP.
