Inboard Light Installation Note

  1. Insert the inboard light into the trunk lid (liftgate) as shown in the figure, then pivot it inward and fix in place.

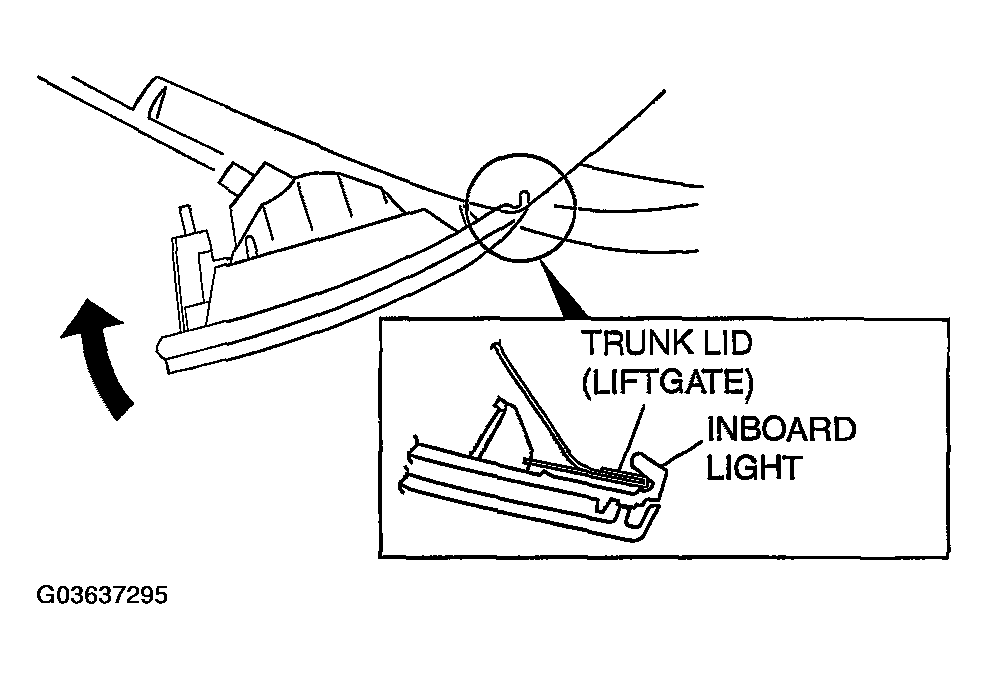

    Fig 1: Inserting Inboard Light Into Trunk Lid
    G03637295Courtesy of MAZDA MOTORS CORP.
  2. Push the bracket onto the trunk lid (liftgate) as shown in the figure and install.

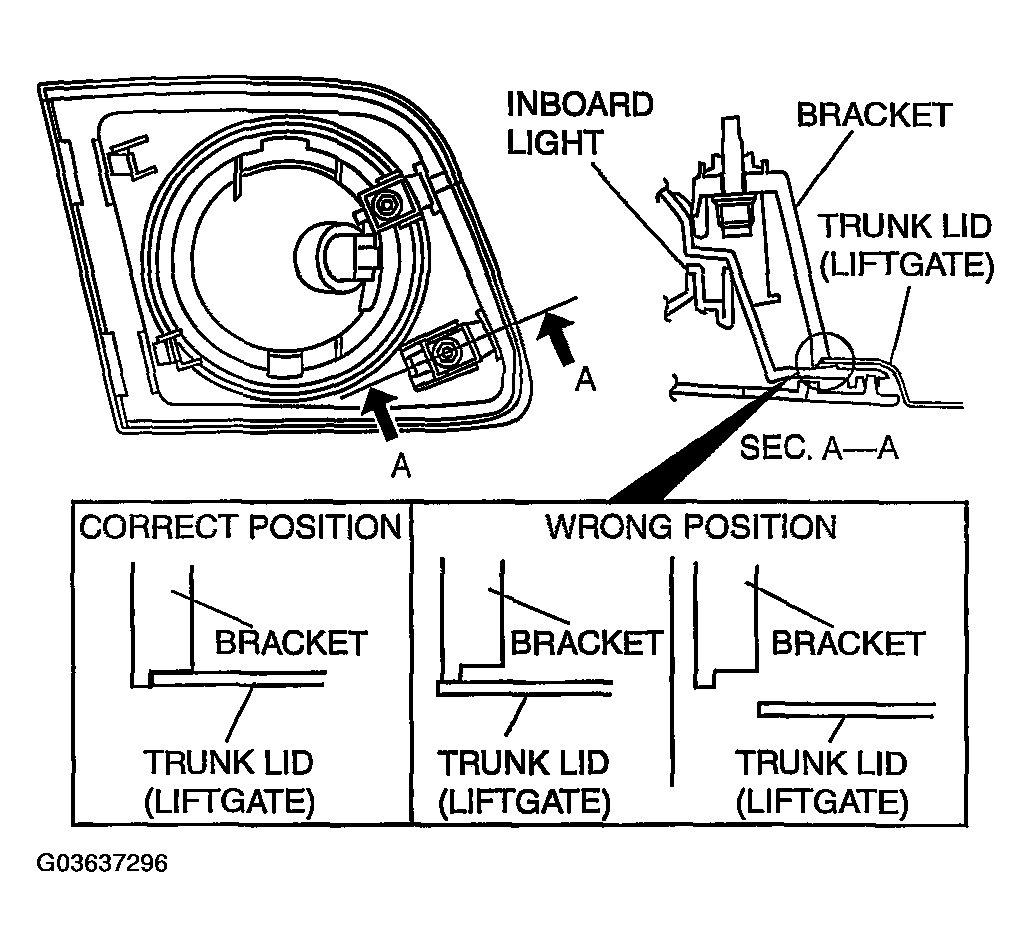

    Fig 2: Pushing Bracket Onto Trunk Lid (Liftgate)
    G03637296Courtesy of MAZDA MOTORS CORP.
