Headlight Leveling Switch Inspection

  1. Verify that continuity between the headlight leveling switch terminals is as indicated in the figure.
    • If not as indicated in the figure, replace the headlight leveling switch.

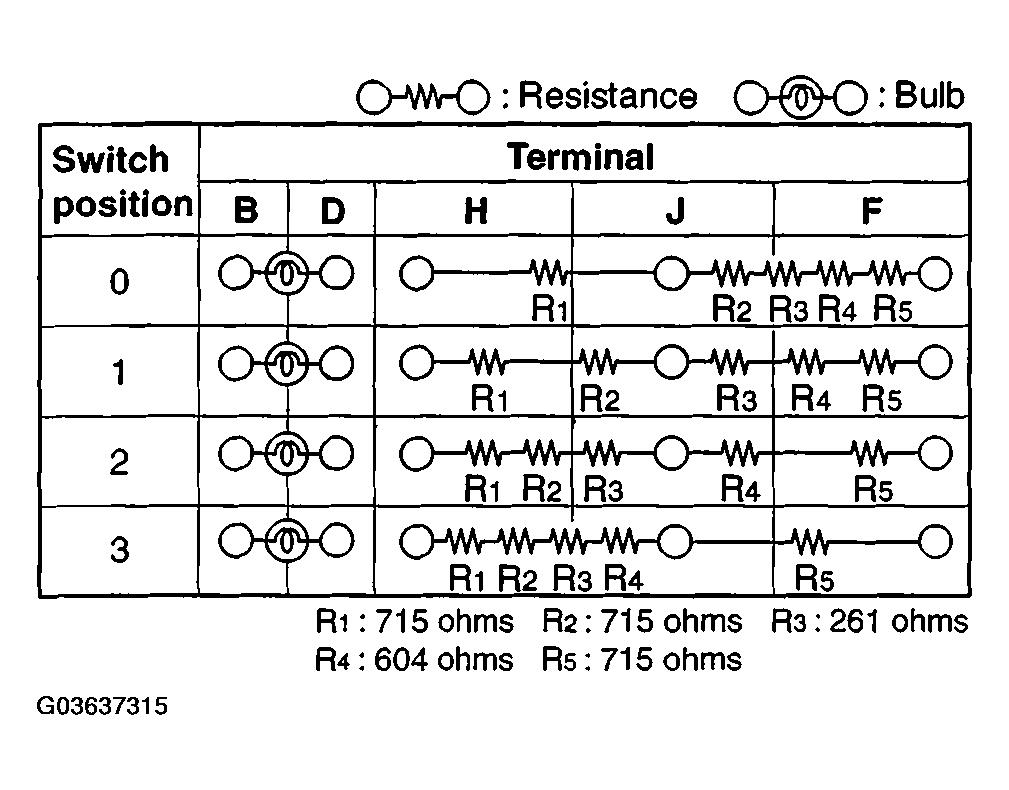

    Fig 1: Headlight Leveling Switch Resistance Specification
    G03637315Courtesy of MAZDA MOTORS CORP.
    Fig 2: Identifying Headlight Leveling Switch Connector Terminals
    G03637316Courtesy of MAZDA MOTORS CORP.
