Combination Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
    2. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    6. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    7. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    8. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.
  4. Install in the reverse order of removal.

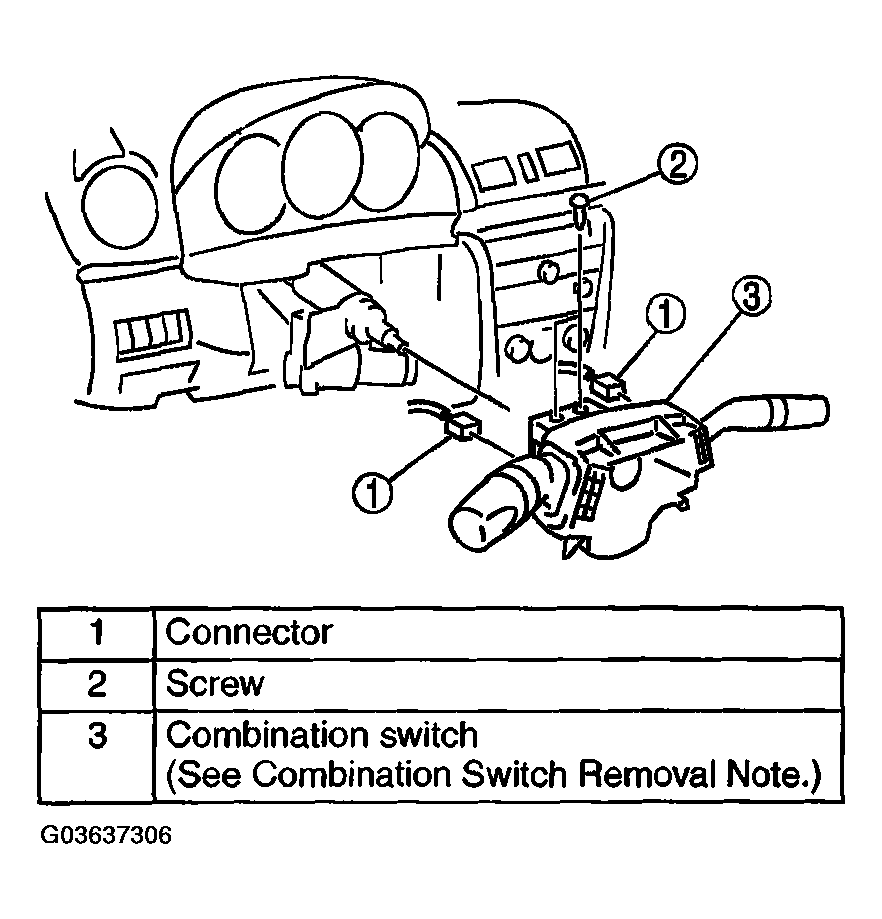

  5. Fig 1: Combination Switch Removal/Installation
    G03637306Courtesy of MAZDA MOTORS CORP.
